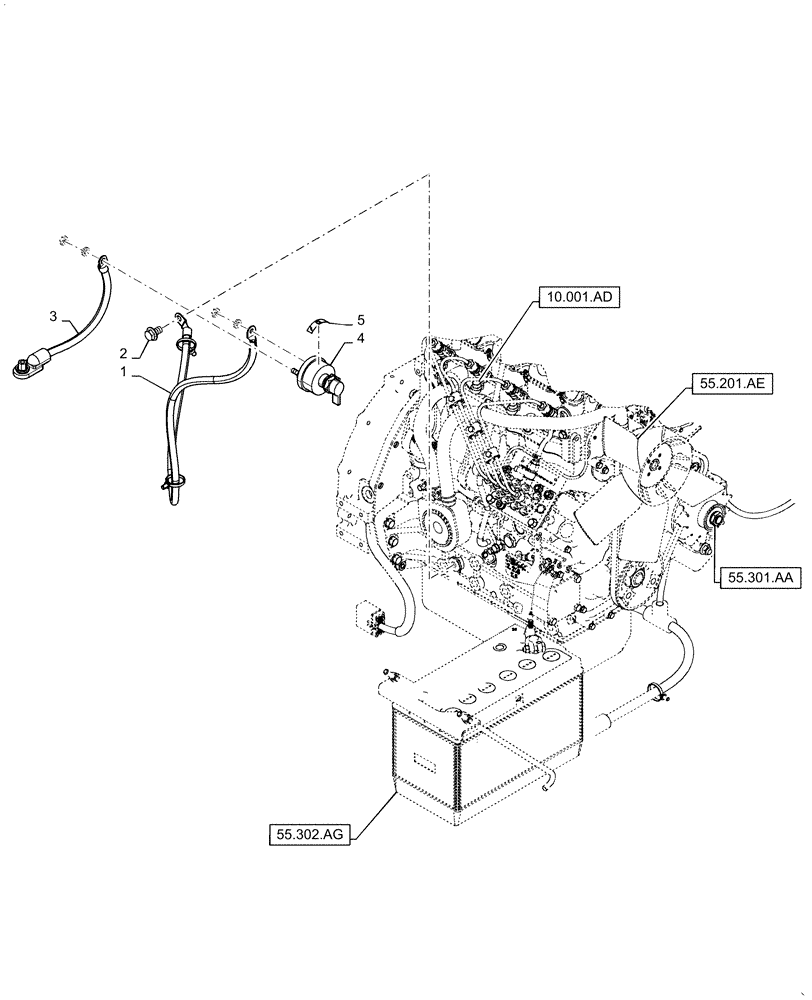

Запчасти Case IH SR210 (55.302.AV[04]) - BATTERY DISCONNECT (55) - ELECTRICAL SYSTEMS

1

84599381

Disconnect Switch to Engine Ground

GROUND CABLE,1001mm L

1шт.

2

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

1шт.

3

47721262

340mm L, Negative Battery Terminal to Disconnect Switch, Years: -16-JUL-17

NEG BATTERY CABLE

1шт.

Service Until Unavailable, Then Replace With 48109939

1шт.

3

48109939

Negative Battery Terminal to Disconnect Switch, Start Year: 17-JUL-17

NEG BATTERY CABLE

1шт.

4

87458467

ROTARY SWITCH

Master Battery Disconnect, Years: -16-JUL-17

1шт.

4

48109942

Master Battery Disconnect, Start Year: 17-JUL-17

ROTARY SWITCH

1шт.

5

176332A1

DECAL

Battery Disconnect

1шт.
