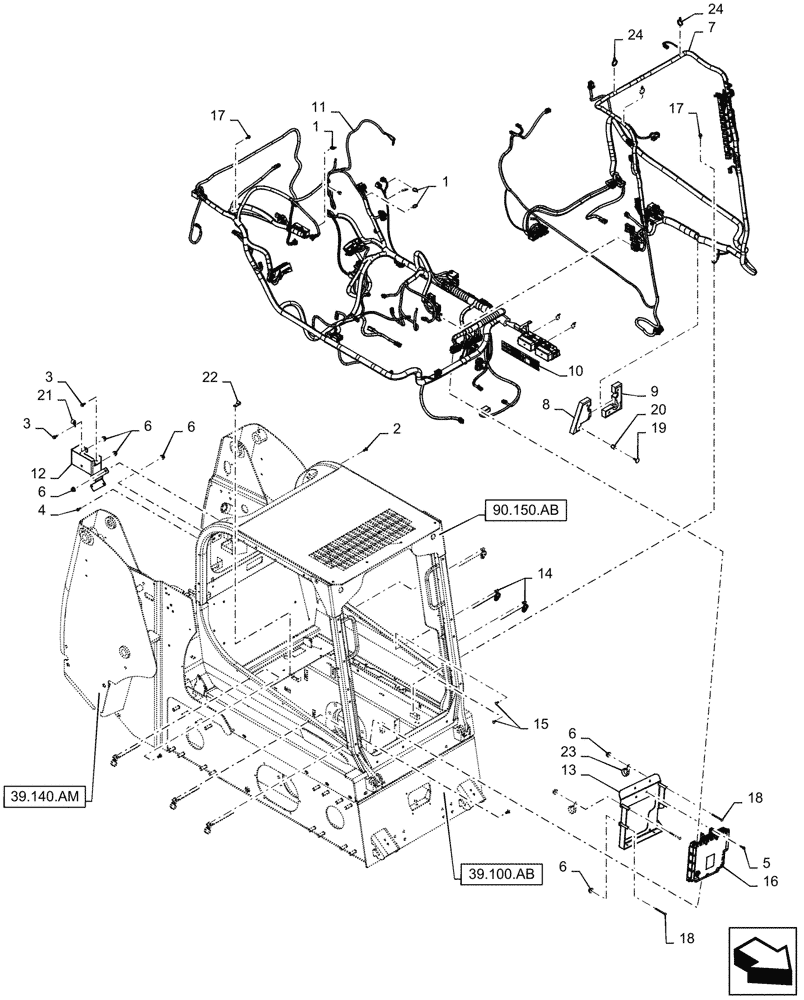

Запчасти Case IH SR210 (55.101.AC[04]) - WIRE HARNESS & CONNECTOR, ELECTRONIC CONTROLS, OPEN CAB (03-JUN-2015 & PRIOR) (55) - ELECTRICAL SYSTEMS

1

263117

CABLE TIE,292.1mm L, Nylon, Black

6шт.

2

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

3

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

3шт.

4

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

5

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

6

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

10шт.

7

47385476

Cab EH, Open Cab

WIRE HARNESS

1шт.

8

47535366

Inner, LH Assy

SEAL

1шт.

9

47535368

Outer, LH Assy

SEAL

1шт.

10

47544626

Fuse Box Layout EH

DECAL

1шт.

11

47523493

Chassis EH, Years: -24-AUG-14

WIRE HARNESS

1шт.

11

47696882

Chassis EH, Start Year: 25-AUG-14

WIRE HARNESS

1шт.

12

47570127

Engine Relay Mounting, Years: -24-AUG-14

BRACKET

1шт.

12

47704466

Engine Relay Mounting, Start Year: 25-AUG-14

BRACKET

1шт.

13

84332287

ECM

BRACKET

1шт.

14

84420746

CABLE TIE,403.9mm L, Nylon

Tie

10шт.

15

84420768

FASTENER,Pine Tree, 5/8" x 20.01mm

10шт.

16

47395504

ECU

UCM SSL

1шт.

17

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

18

86512442

CARRIAGE BOLT,Sht Sq Nk, M6 x 80mm, Cl 8.8

4шт.

19

86620930

FASTENER,Push-In, 1.10" L, Nylon

4шт.

20

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

4шт.

21

87037780

CLAMP,15.8mm, Coat, 8.7mm Bolt Hole, J Type

1шт.

22

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

23

87313355

CLAMP,38.1mm, Coat, 8.7mm Bolt Hole, J Type

2шт.

24

87668737

CABLE TIE,203.2mm L, Nylon, Black

FIR Tree Assy

2шт.
