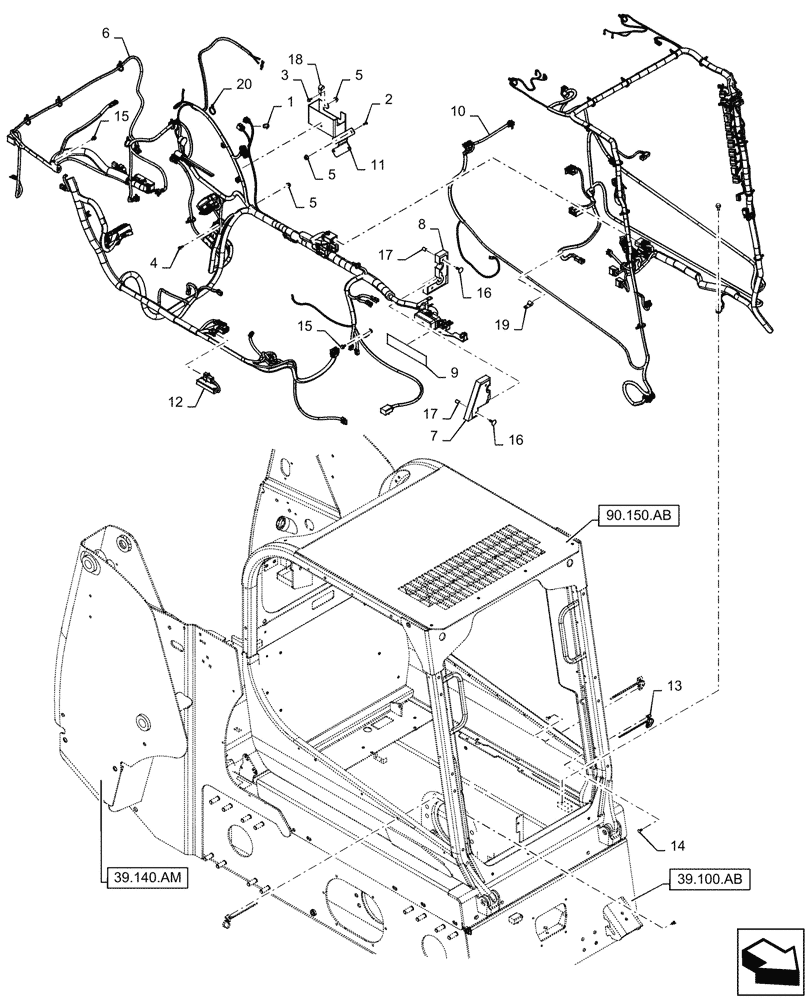

Запчасти Case IH SR210 (55.101.AC[02]) - WIRE HARNESS & CONNECTOR, MECHANICAL CONTROLS, OPEN CAB (03-JUN-2015 & PRIOR) (55) - ELECTRICAL SYSTEMS

1

263117

CABLE TIE,292.1mm L, Nylon, Black

6шт.

2

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

3

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

3шт.

4

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

5

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

6шт.

6

47747252

Chassis Mechanical

WIRE HARNESS

1шт.

7

47535366

LH, Assy

SEAL

1шт.

8

47535368

RH, Assy

SEAL

1шт.

9

47544625

Fuse Box Layout

DECAL

1шт.

10

47747228

Cab Mechanical, Open Cab

WIRE HARNESS

1шт.

11

47704466

Engine Relay

BRACKET

1шт.

12

84131374

MODULE

Prop Aux

1шт.

13

84420746

CABLE TIE,403.9mm L, Nylon

Tie

10шт.

14

84420768

FASTENER,Pine Tree, 5/8" x 20.01mm

10шт.

15

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

6шт.

16

86620930

FASTENER,Push-In, 1.10" L, Nylon

4шт.

17

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

4шт.

18

87037780

CLAMP,15.8mm, Coat, 8.7mm Bolt Hole, J Type

1шт.

19

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

20

87668737

CABLE TIE,203.2mm L, Nylon, Black

FIR Tree Assy

3шт.
