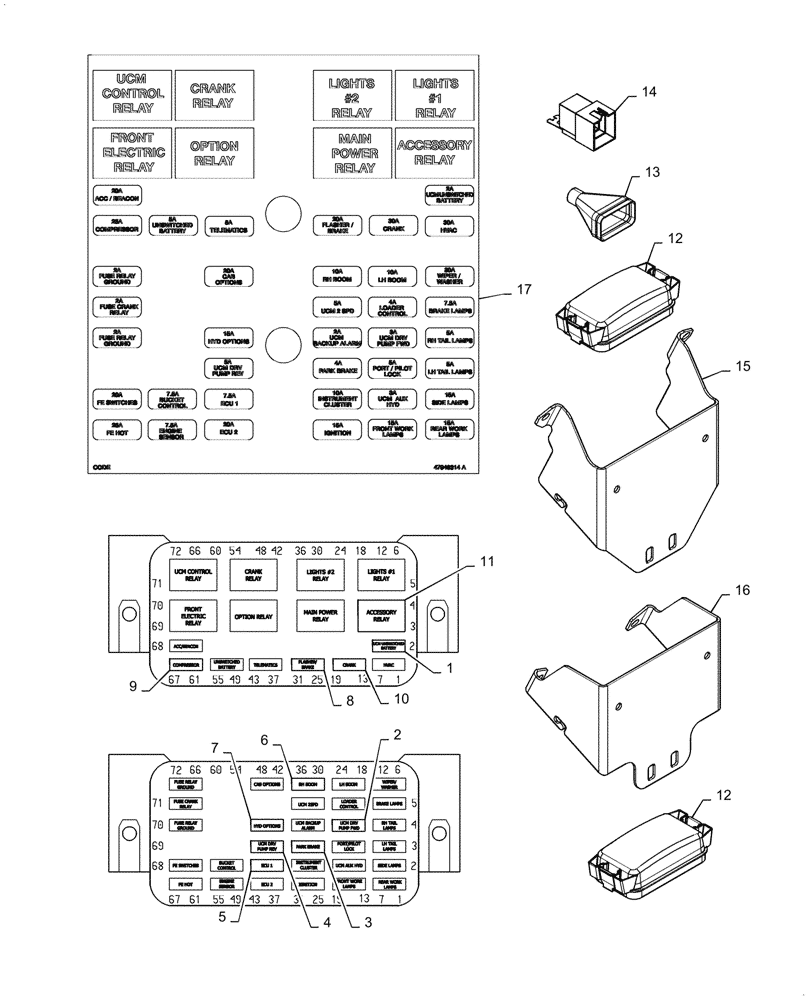

Запчасти Case IH SR210 (55.100.DO[02]) - FUSE & RELAYS, ELECTRO-HYDRAULIC CONTROLS (14-NOV-2016 & NEWER) (55) - ELECTRICAL SYSTEMS

1

84153828

FUSE,2A, Mini, Gray

5шт.

2

84326484

FUSE,3A, Mini, Violet

1шт.

3

84326485

FUSE,4A, Mini, Pink

2шт.

4

84153830

FUSE,5A, Mini, Beige

2шт.

5

84152583

FUSE,7.5A, Mini, Brown

4шт.

6

84127702

FUSE,10A, Mini, Red

3шт.

7

84127703

FUSE,15A, Mini, Blue

5шт.

8

84127704

FUSE,20A, Mini, Yellow

5шт.

9

84127705

FUSE,25A, Mini, White

2шт.

10

84127708

FUSE,30A, Mini, Green

2шт.

11

87696396

RELAY,12V, 35A, Micro

8шт.

12

47530554

COVER

Fuse Box

2шт.

13

84479010

BOOT

Fuse Box, Rear

2шт.

14

84297432

ECU Main

RELAY,12V, 70A

1шт.

15

47918417

BRACKET

Upper Fuse Box, Shield

1шт.

16

47920260

BRACKET

Upper Fuse Box, Shield

1шт.

17

47946314

DECAL

Fuse Box Layout, EH

1шт.
