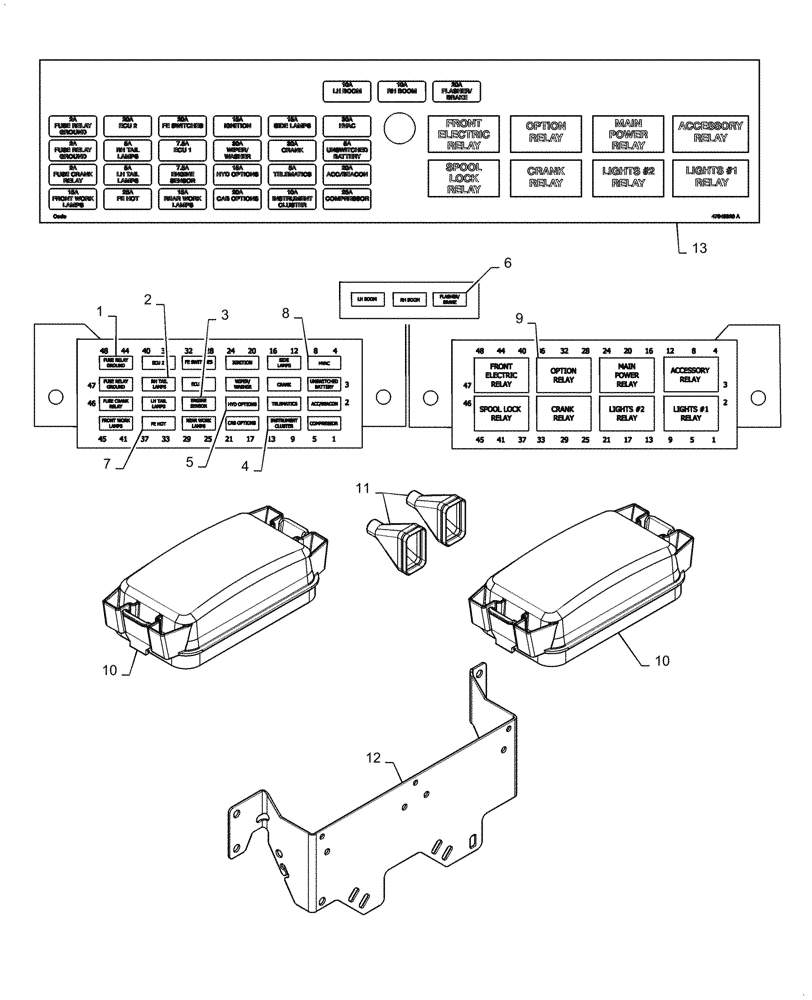

Запчасти Case IH SR210 (55.100.DO[01]) - FUSE & RELAYS, MECHANICAL CONTROLS (14-NOV-2016 & NEWER) (55) - ELECTRICAL SYSTEMS

1

84153828

FUSE,2A, Mini, Gray

3шт.

2

84153830

FUSE,5A, Mini, Beige

4шт.

3

84152583

FUSE,7.5A, Mini, Brown

2шт.

4

84127702

FUSE,10A, Mini, Red

3шт.

5

84127703

FUSE,15A, Mini, Blue

5шт.

6

84127704

FUSE,20A, Mini, Yellow

5шт.

7

84127705

FUSE,25A, Mini, White

2шт.

8

84127708

FUSE,30A, Mini, Green

3шт.

9

87696396

RELAY,12V, 35A, Micro

8шт.

10

47530554

COVER

Fuse Box

2шт.

11

84479010

BOOT

Fuse Box, Rear

2шт.

12

47893988

Fuse Box, Mounting

BRACKET

1шт.

13

47946320

Mechanical, Fuse Box Layout

DECAL

1шт.
