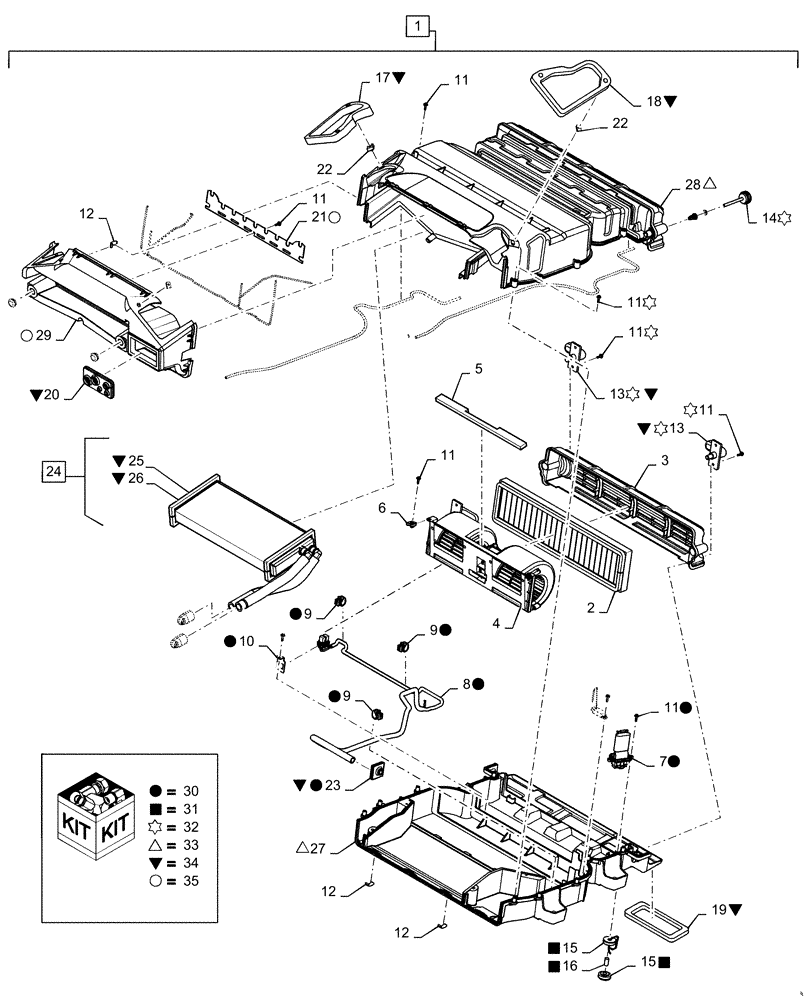

Запчасти Case IH SR210 (50.100.AP[02]) - HEATER ASSY (50) - CAB CLIMATE CONTROL
![Схема запчастей Case IH SR210 - (50.100.AP[02]) - HEATER ASSY (50) - CAB CLIMATE CONTROL](https://partsell.ru/storage/images/caseih/3760877.png)
№
Артикул
Название
Примечание
Количество
1
84267543
Incl 2 - 29
HEATER
1шт.
2
47635214
KIT
Service
1шт.
2
47635215
KIT
Charcoal, Service, Optional
1шт.
3
NSS
NOT SOLD SEPARAT
Case, Incl in 1
1шт.
4
NSS
NOT SOLD SEPARAT
Blower, Incl in 1
1шт.
5
NSS
NOT SOLD SEPARAT
Gasket, Incl in 1
1шт.
6
NSS
NOT SOLD SEPARAT
Clip, Incl in 1
2шт.
7
NSS
NOT SOLD SEPARAT
Resistor, Incl in 30
1шт.
8
NSS
NOT SOLD SEPARAT
Wire Harness, Incl in 30
1шт.
9
NSS
NOT SOLD SEPARAT
Clip, Incl in 30
3шт.
10
NSS
NOT SOLD SEPARAT
Bracket, Incl in 30
1шт.
11
NSS
NOT SOLD SEPARAT
Screw, Incl in 30,32
23шт.
12
NSS
NOT SOLD SEPARAT
Clip, Incl in 1
11шт.
13
NSS
NOT SOLD SEPARAT
Latch, Incl in 32,34
2шт.
14
NSS
NOT SOLD SEPARAT
Knob, Incl in 32
2шт.
15
NSS
NOT SOLD SEPARAT
Block, Incl in 31
8шт.
16
NSS
NOT SOLD SEPARAT
Spacer, Incl in 31
4шт.
17
NSS
NOT SOLD SEPARAT
Gasket, Incl in 34
1шт.
18
NSS
NOT SOLD SEPARAT
Gasket, Incl in 34
1шт.
19
NSS
NOT SOLD SEPARAT
Gasket, Incl in 34
1шт.
20
NSS
NOT SOLD SEPARAT
Gasket, Incl in 34
1шт.
21
NSS
NOT SOLD SEPARAT
Plate, Incl in 35
1шт.
22
NSS
NOT SOLD SEPARAT
Spring Clip, Incl in 1
4шт.
23
NSS
NOT SOLD SEPARAT
Gasket, Incl in 30,34
1шт.
24
47456103
Incl 25 - 26
HEATER
1шт.
25
NSS
NOT SOLD SEPARAT
Seal, Incl in 24,34
1шт.
26
NSS
NOT SOLD SEPARAT
Insulation, Incl in 24,34
1шт.
27
NSS
NOT SOLD SEPARAT
Box, Incl in 33
1шт.
28
NSS
NOT SOLD SEPARAT
Box, Incl in 33
1шт.
29
NSS
NOT SOLD SEPARAT
Box, Incl in 35
1шт.
30
47638727
Incl 7, 8, 9, 10, 11, 23, Years: -29-AUG-14
KIT
1шт.
30
47860911
KIT
Incl 7, 8, 9, 10, 11, 23, Start Year: 01-SEP-14
1шт.
31
47635213
KIT
Incl 15, 16
1шт.
32
47635216
KIT
Incl 11, 13, 14
1шт.
33
47635219
KIT
Incl 27, 28
1шт.
34
47635221
GASKET KIT
Incl 13, 17, 18, 19, 20, 23, 25, 26
1шт.
35
47635222
KIT
Incl 21, 29
1шт.
Выбрано товаров: 37
