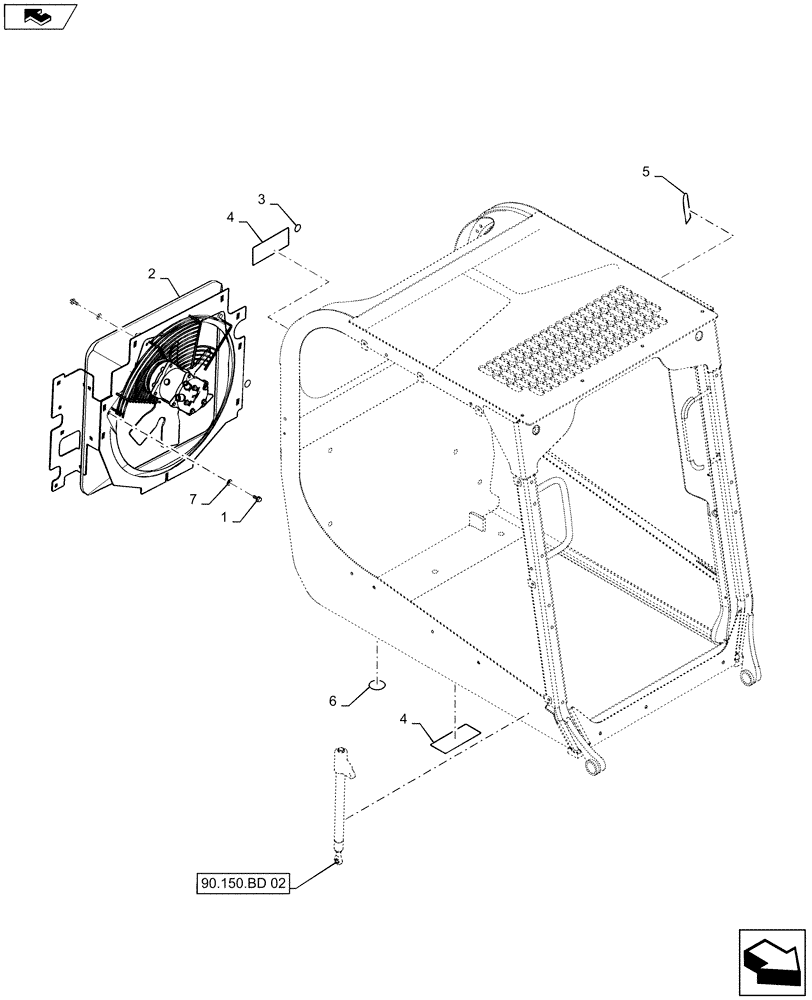

Запчасти Case IH SR210 (50.100.AC[03]) - OPEN CAB, NO HEAT OR HVAC (50) - CAB CLIMATE CONTROL

1

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

2

47416077

GUARD

Fan

1шт.

3

414635A1

COVER,25.4mm OD x 0.51mm Thk

2шт.

4

84312310

COVER,165mm L x 70mm W x 1.70mm Thk

Plate

2шт.

5

84353623

DECAL

HVAC Blank

1шт.

6

84357636

DECAL,53mm OD, Gray

Plug

1шт.

7

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.
