Запчасти Case IH SR210 (44.511.AG[01]) - WHEELS (44) - WHEELS

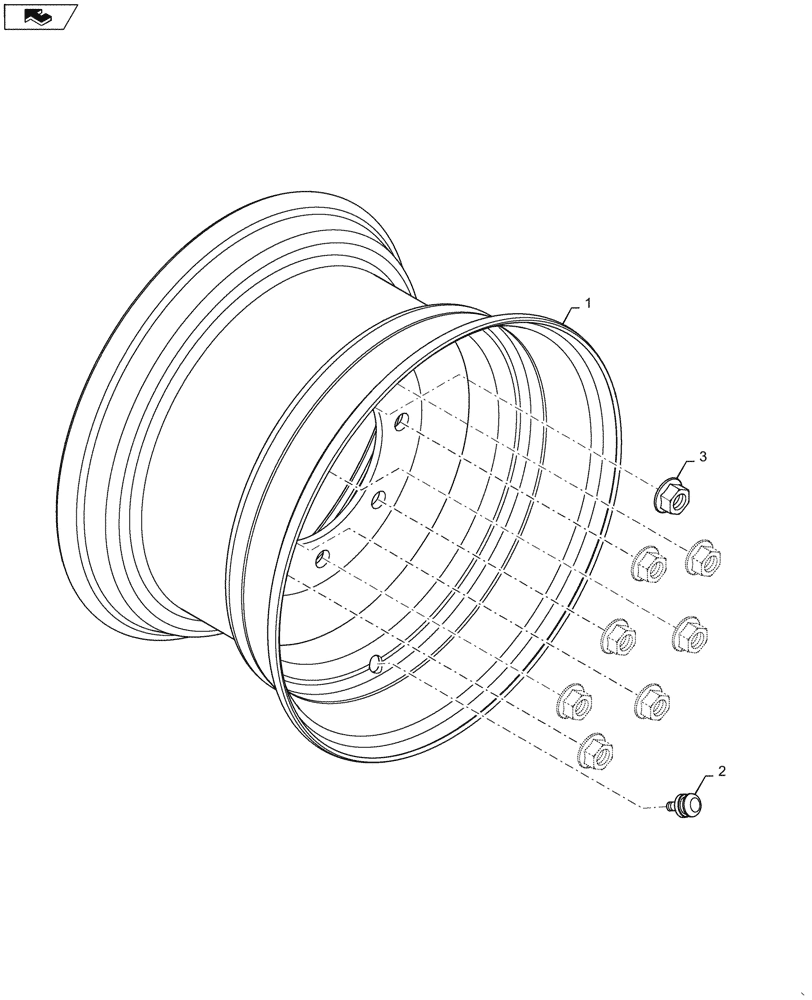

Схема запчастей Case IH SR210 - (44.511.AG[01]) - WHEELS (44) - WHEELS
2
3
home
1

Артикул

Название

Примечание

Количество

*

PL

PROCURE LOCALLY

10" x 16.5" Tire

4шт.

1

84239411

Stamped Center, 64 OTW

RIM

4шт.

1

47916535

Stamped Center, 64 OTW

RIM,16.5” Dia x 8.25” W, 8 Bolt, Gray

4шт.

*

PL

PROCURE LOCALLY

12" x 16.5" Tire

4шт.

1

84239414

Stamped Center, 70 OTW

RIM

4шт.

1

47913505

Stamped Center, 70 OTW

RIM,16.5” Dia x 9.75” W, 8 Bolt, Gray

4шт.

1

84239417

Full Center, 70 OTW

RIM

4шт.

1

47913504

Full Center, 70 OTW

RIM,16.5” Dia x 9.75” W, 8 Bolt, Gray

4шт.

*

PL

PROCURE LOCALLY

33" x 15.5" x 16.5" Tire

4шт.

1

84239421

Full Center, 76 OTW

RIM

4шт.

1

47913502

Full Center, 76 OTW

RIM,16.5” Dia x 12” W, 8 Bolt, Gray

4шт.

2

512083

VALVE STEM

Incl Cap

4шт.

3

86512498

FLANGE NUT,M16 x 2, Cl 10

32шт.

3

408127A1

WHEEL NUT,Conical End Hex, M16 x 2.0, 14.80mm High, Cl 10

32шт.

Выбрано товаров: 14
