Запчасти Case IH SR200 (35.353.AC[04]) - BRAKE LINES (35) - HYDRAULIC SYSTEMS

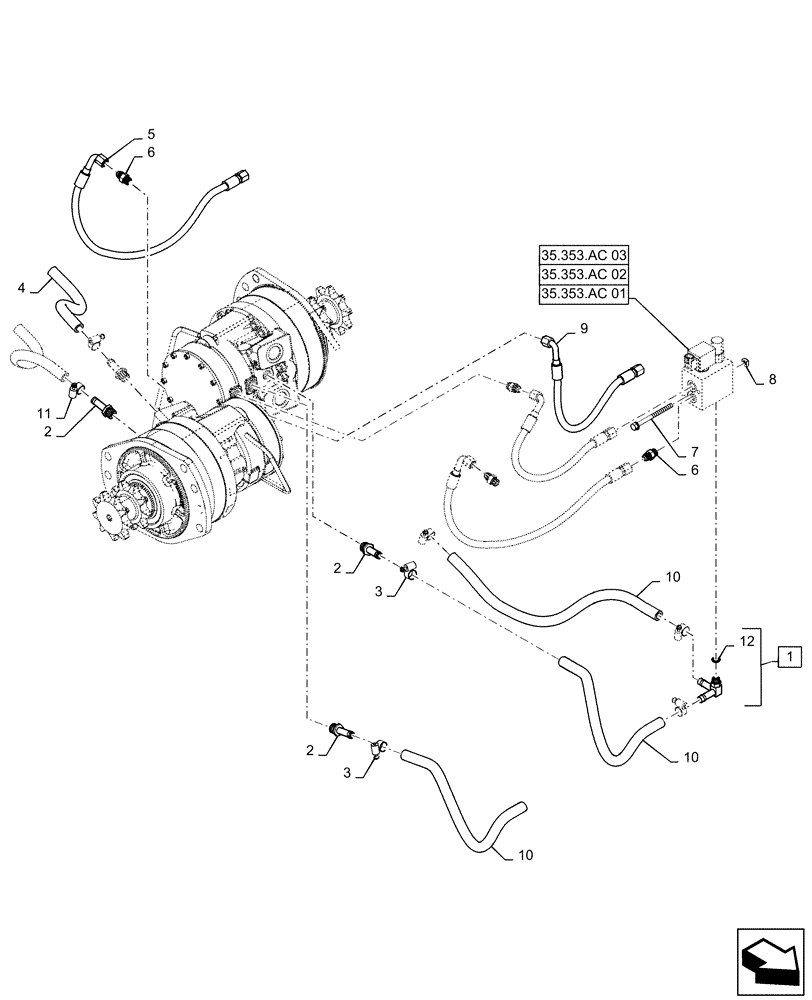

Схема запчастей Case IH SR200 - (35.353.AC[04]) - BRAKE LINES (35) - HYDRAULIC SYSTEMS
6
1
12
6
35.353.ac 02
35.353.ac 01
7
11
2
4
3
5
35.353.ac 03
10
10
2
3
10
8
2
9

Артикул

Название

Примечание

Количество

1

84187294

Incl 12

ADAPTER,12.7mm OD Hose Bead x 12.7mm Hose Bead x 9/16" - 18 ORB

1шт.

2

87010108

FITTING,1/2" Hose Bead x 3/4" - 16 ORB

3шт.

3

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

2шт.

4

84259527

Case Drain

HOSE,12.7mm ID x 405.8mm L

1шт.

5

84257176

Brake

HOSE ASSY.,6.35mm ID x 656.4mm L, SAE 100R17

1шт.

6

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

7

86511844

BOLT,M8 x 1.25 x 100mm, 22mm Thd, Cl 8.8

2шт.

8

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

9

84257177

HOSE ASSY.,6.35mm ID x 420.8mm L, SAE 100R17

1шт.

10

84257173

HOSE,12.7mm ID x 570mm L

2шт.

11

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

4шт.

12

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 12
