(35.220.AA[01]) - STANDARD GEAR PUMP

Запчасти Case IH SR200 (35.220.AA[01]) - STANDARD GEAR PUMP (35) - HYDRAULIC SYSTEMS

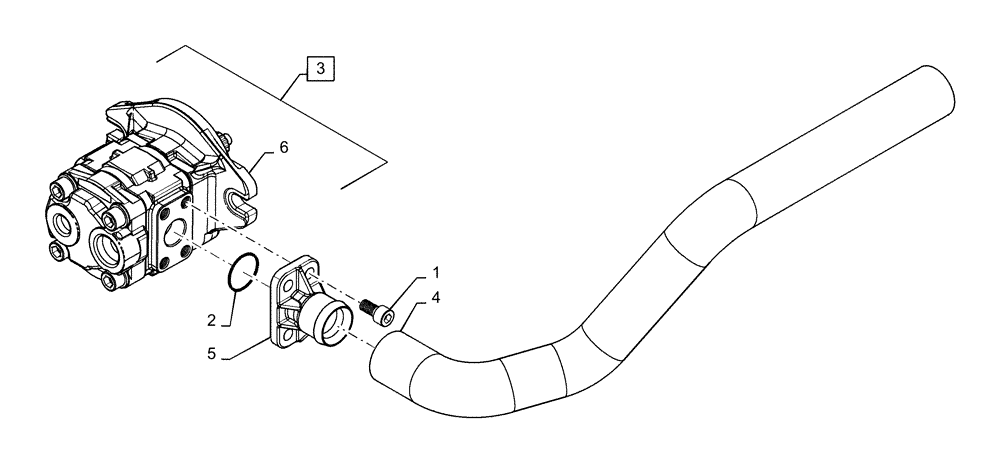

Схема запчастей Case IH SR200 - (35.220.AA[01]) - STANDARD GEAR PUMP (35) - HYDRAULIC SYSTEMS
5
4
3
6
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

14307321

HEX SOC SCREW,M10 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

2

14463580

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

1шт.

3

84256247

34.1CC, Gear, Incl 6

PUMP,34.1 CC

1шт.

4

84349296

HOSE,38.1mm ID

Gear Pump Suction, Years: -03-JUN-15

1шт.

4

47841484

Gear Pump Suction, Start Year: 04-JUN-15

HOSE

1шт.

5

84561027

Gear Pump Suction

FITTING

1шт.

6

84389261

Incl In 3

SEAL KIT

1шт.
