Запчасти Case IH SR200 (29.204.AB[03]) - HYDROSTATIC PUMP, DRIVE LINES, E-H CONTROLS (29) - HYDROSTATIC DRIVE

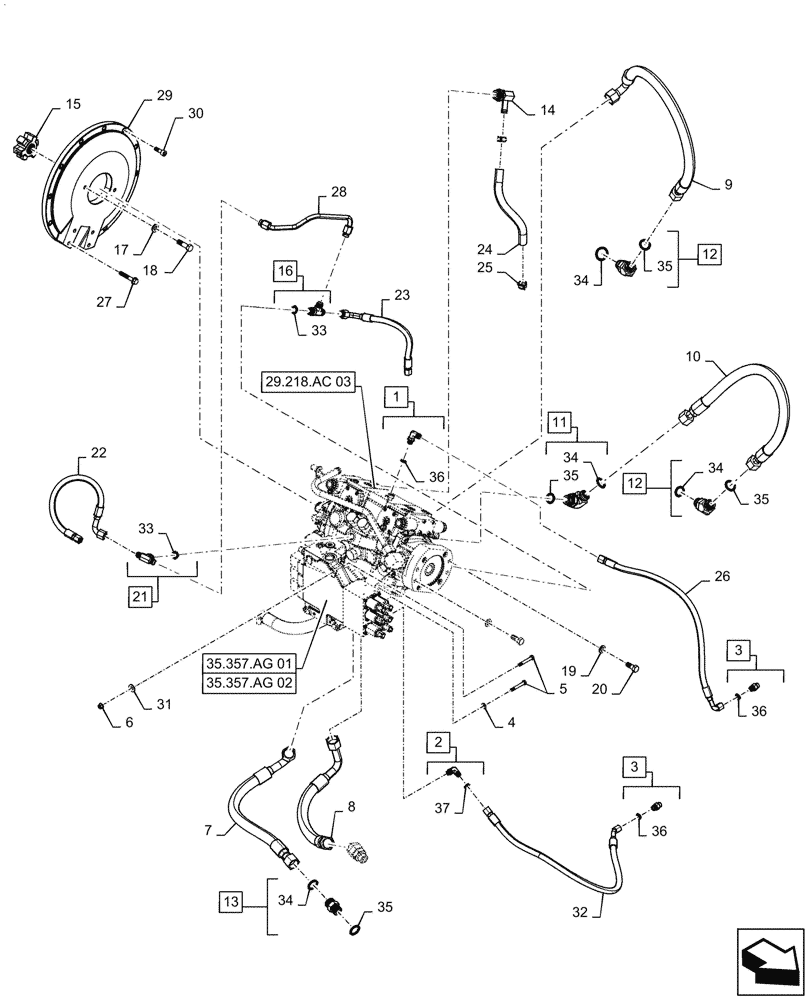

Схема запчастей Case IH SR200 - (29.204.AB[03]) - HYDROSTATIC PUMP, DRIVE LINES, E-H CONTROLS (29) - HYDROSTATIC DRIVE
35.357.ag 02
1
35
9
32
28
17
3
33
37
2
13
36
7
24
22
20
15
23
5
4
35
34
12
19
36
25
34
16
12
11
8
14
36
29
30
3
26
35
33
27
35
18
10
31
6
34
34
21
29.218.ac 03
35.357.ag 01

Артикул

Название

Примечание

Количество

1

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 36

3шт.

2

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 37

1шт.

3

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 36

2шт.

4

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

5

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

7

47893434

Loop

HOSE

1шт.

8

47893432

Loop

HOSE

1шт.

9

47836895

Loop

HOSE

1шт.

10

47836896

Loop

HOSE

1шт.

11

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl 34, 35

1шт.

12

9846870

ELBOW,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 34, 35

6шт.

13

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 34, 35

1шт.

14

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

1шт.

15

87711337

COUPLING,19T, 1-1/8" ID

Drive Star

1шт.

16

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

Incl 33

1шт.

17

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

18

9790095

BOLT,1/2" - 13 x 1-3/4", Gr 8

2шт.

19

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

20

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

21

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

Incl 33

1шт.

22

84299736

FLEXIBLE HOSE,9.53mm ID x 512mm L, SAE 100R17

EH LV Interlok

1шт.

23

84299737

FLEXIBLE HOSE,9.53mm ID x 377.8mm L, SAE 100R17

EH Brake Charge

1шт.

24

84273647

Pump Drain

HOSE,15.88mm ID x 276mm L

1шт.

25

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

26

84309599

FLEXIBLE HOSE,9.53mm ID x 780mm L, SAE 100R17

EH Brake NOR

1шт.

27

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

2шт.

28

84349300

RIGID TUBE,12.7mm OD

EH Charge Supply

1шт.

29

47659227

COVER

Flywheel

1шт.

30

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

9шт.

31

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

32

48019269

HYDRAULIC HOSE,10mm ID x 870mm L

EH Contriol to Brake

1шт.

33

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

34

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

35

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

36

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

5шт.

37

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Выбрано товаров: 37
