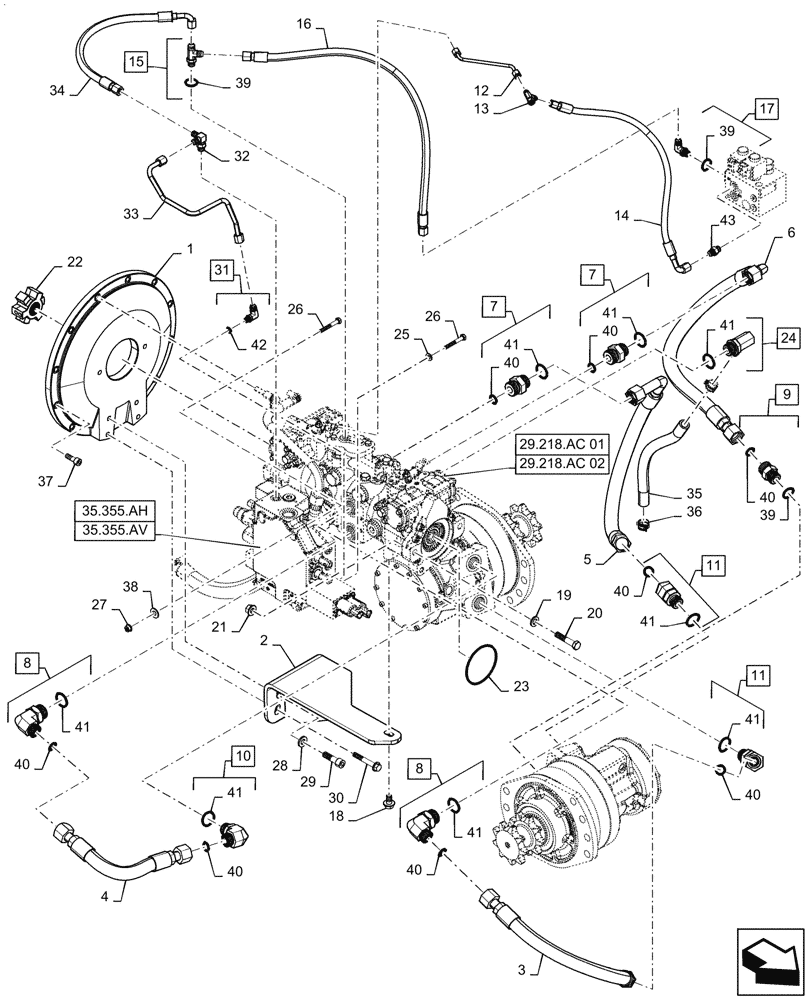

Запчасти Case IH SR200 (29.204.AB[01]) - HYDROSTATIC PUMP, DRIVE LINES, MECHANICAL CONTROLS (29) - HYDROSTATIC DRIVE

1

47659227

COVER

Flywheel

1шт.

2

84560744

MOUNT

Pump Mount

1шт.

3

47884938

Loop

HOSE,19mm ID x 531mm L

1шт.

4

47884937

Loop

HOSE,19mm ID x 344mm L

1шт.

5

47890500

Loop

HOSE,19mm ID x 711mm L

1шт.

6

47891941

Loop

HOSE,19mm ID x 771mm L

1шт.

7

87359470

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

Incl 40, 41

2шт.

8

87326965

90 ELBOW,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

Incl 40, 41

2шт.

9

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 39, 40

1шт.

10

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl 40, 41

1шт.

11

9846870

ELBOW,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 40, 41

2шт.

12

87021277

TUBE,6.35mm OD x 124.9mm L, 37 Degree Flare

1шт.

13

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

14

84257175

HOSE ASSY.,6.35mm ID x 650mm L, SAE 100R17

1шт.

15

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 39

1шт.

16

84257174

HOSE ASSY.,9.53mm ID x 765mm L, SAE 100R17

Charge to Brake

1шт.

17

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 39

1шт.

18

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

1шт.

19

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

20

9706693

BOLT,M12 x 60mm, Cl 8.8

2шт.

21

9804279

FLANGE NUT,Hex, M12, Cl 8

2шт.

22

87711337

COUPLING,19T, 1-1/8" ID

Drive Star

1шт.

23

87013729

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

1шт.

24

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

Incl 41

1шт.

25

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

26

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

27

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

28

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

29

15734

SCREW,Hex Socket, 1/2" - 13 x 1-3/4"

4шт.

30

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

2шт.

31

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 42

1шт.

32

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

33

84373389

RIGID TUBE,9.53mm OD

Aux Charge

1шт.

34

84259516

FLEXIBLE HOSE,9.53mm ID x 482.3mm L, SAE 100R17

1шт.

35

84273645

HOSE,15.88mm ID x 327mm L

Pump Drain

1шт.

36

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

37

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

9шт.

38

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

39

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

40

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5шт.

41

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

5шт.

42

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

43

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.
