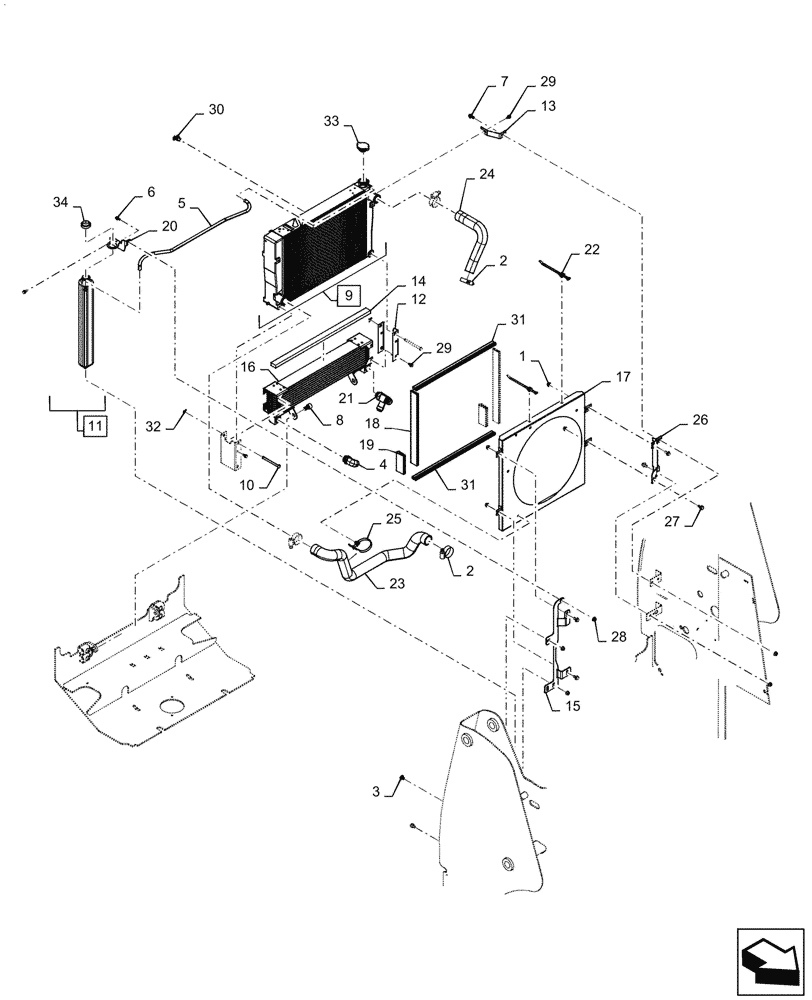

Запчасти Case IH SR200 (10.400.BF) - FAN SHROUD (10) - ENGINE

1

43435

FLANGE NUT,Hex, M10 x 1.5

8шт.

2

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

4шт.

3

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

1шт.

4

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

1шт.

5

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

1шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

7

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

8

9837786

HEX SOC SCREW,M12 x 20mm, Cl 8.8, Full Thd

2шт.

9

47946380

Radiator, Standard Fin Density, Incl 33

KIT

1шт.

9

47947705

Radiator, Low Fin Density, Incl 33

KIT

1шт.

10

47375204

PIN,9.65mm OD x 120.45mm L

2шт.

11

47490003

BOTTLE

Coolant Recovery, Incl 34

1шт.

12

47511179

Cooler Mounting, Gray

CHANNEL

2шт.

13

47516027

BRACKET

Radiator Mounting

1шт.

14

47535111

Coolers, 35mm x 18mm

INSULATION

1шт.

15

47681404

RH, Fan Shroud Mounting

BRACKET

1шт.

16

47740534

Standard Fin Density

OIL COOLER

1шт.

16

47778419

Low Fin Density

OIL COOLER

1шт.

17

47803800

480mm Fan

SHROUD

1шт.

18

47756641

Cut to Length, 460mm L

RUBBER SEAL

2шт.

19

47839170

Cut to Length, 116mm L

HOSE, BULK

2шт.

20

47938192

Coolant Bottle, Upper

BRACKET

1шт.

21

84259482

TEE,1-5/16" - 12 ORB x 1-5/16" - 12 JIC x 1-5/16" - 12 JIC

1шт.

22

84259663

CABLE TIE,228.6mm L, Nylon, Black

2шт.

23

84277826

Lower Coolant

HOSE

1шт.

24

84332751

Upper Coolant

RADIATOR HOSE

1шт.

25

84551467

CABLE TIE,381mm L

1шт.

26

84552138

BRACKET

LH, Fan Shroud Mounting

1шт.

27

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

28

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

29

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

10шт.

30

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

31

87578980

RUBBER SEAL,590mm L

2шт.

32

87700737

CLIP

Pin

2шт.

33

87406949

FILLER CAP

Radiator, 16 PSI

1шт.

34

R50468

CAP

Coolant Recovery Bottle

1шт.
