Запчасти Case IH SR200 (90.160.CK[02]) - TRIM INTERIOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

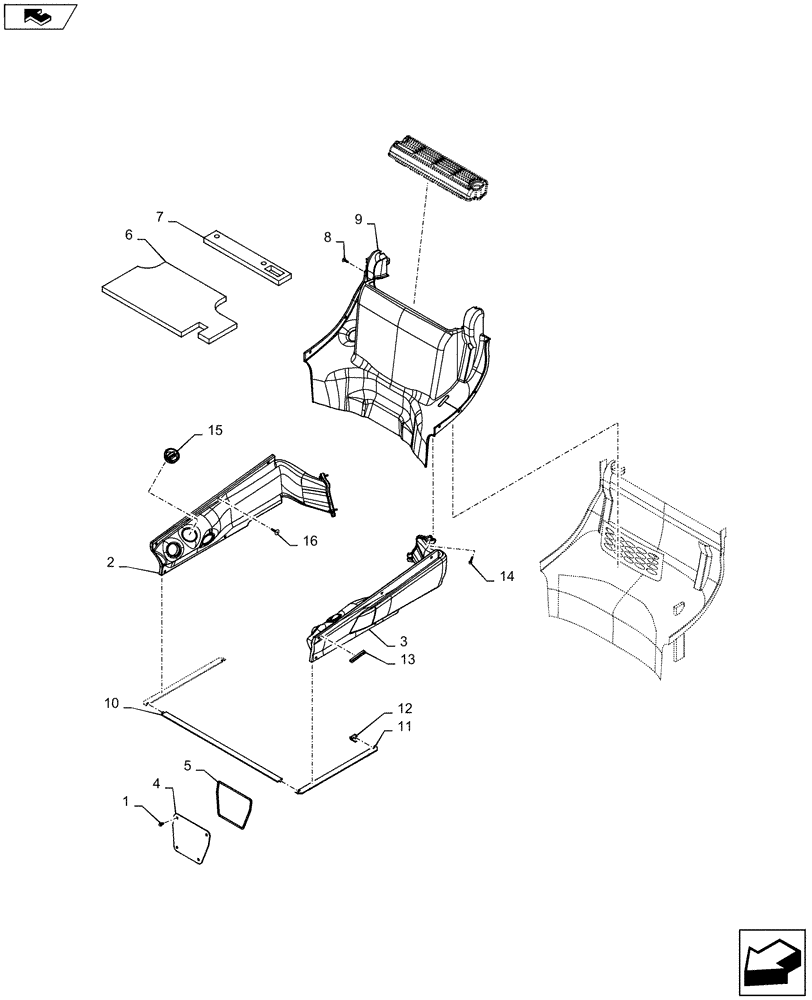

Схема запчастей Case IH SR200 - (90.160.CK[02]) - TRIM INTERIOR (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
2
13
14
4
5
6
9
10
7
home
15
11
1
16
3
12

Артикул

Название

Примечание

Количество

1

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

M8 x 15

4шт.

2

84299751

AIR DUCT

RH, Duct, Air, Wheat, Years: -02-OCT-16

1шт.

2

47919014

DUCT

RH, Trim Panel, Fiat Gray, Start Year: 03-OCT-16

1шт.

3

84299754

AIR DUCT

LH, Duct, Air, Wheat, Years: -02-OCT-16

1шт.

3

47919015

DUCT

LH, Trim Panel, Fiat Gray, Start Year: 03-OCT-16

1шт.

4

84322838

PLATE

Cover

1шт.

5

84322854

Sealing Strip, 891mm

FOAM INSULATION,684mm L x 6mm W x 3mm Thk

1шт.

6

84362126

FOAM INSULATION

Roof

1шт.

7

84370302

FOAM INSULATION

HVAC Box

1шт.

8

84380551

Pine Tree, Wheat, Years: -02-OCT-16

FASTENER

7шт.

8

47918644

FASTENER,Pine Tree, 26.9mm L, Nylon

Pine Tree, Fiat Gray, Start Year: 03-OCT-16

7шт.

9

84389708

Rear Trim, Years: -02-OCT-16

PANEL

1шт.

9

47919011

Rear, Fiat Gray, Start Year: 03-OCT-16

PANEL

1шт.

10

84411489

FOAM INSULATION

Center Upper Chassis

1шт.

11

84416163

FOAM INSULATION

Upper Chassis Long

2шт.

12

84416164

FOAM INSULATION

Upper Chassis Short

2шт.

13

84469613

Flare, 1580mm

TRIM,Bulk 300 FT

1шт.

14

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

4шт.

15

87669161

VENT

Louver Global

6шт.

16

348452A1

FASTENER,Push-In, 37mm L, Nylon

Push-In

10шт.

Выбрано товаров: 20
