Запчасти Case IH SR200 (90.160.AS[02]) - FLOOR PLATE, FOOT CONTROLS (90) - PLATFORM, CAB, BODYWORK AND DECALS

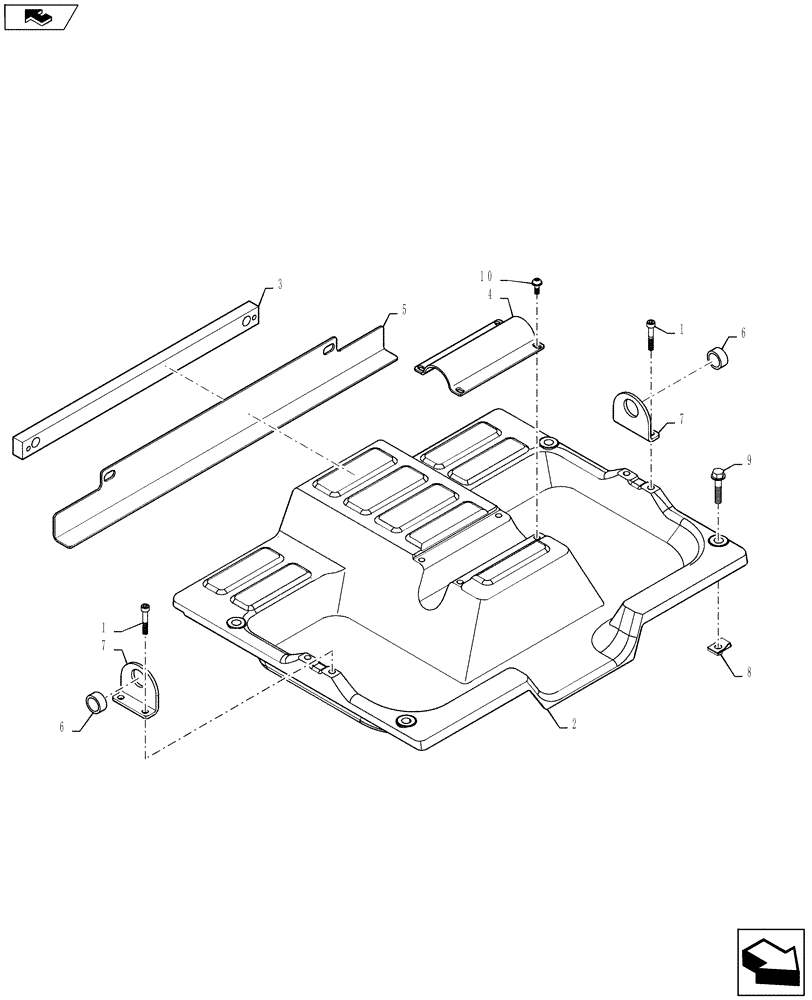

Схема запчастей Case IH SR200 - (90.160.AS[02]) - FLOOR PLATE, FOOT CONTROLS (90) - PLATFORM, CAB, BODYWORK AND DECALS

Артикул

Название

Примечание

Количество

1

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

4шт.

2

84201059

PLATE

Floor, Pedals

1шт.

3

84373110

Lower Heel Plate

FOAM

1шт.

4

84373687

PLATE

Control Pedal Cover

1шт.

5

84377351

Heel Plate

ANGLE

1шт.

6

84553555

BUSHING,19.25mm ID x 25.63mm OD x 8mm L

Foot Control Pivot

2шт.

7

84555971

BRACKET

Foot Control

2шт.

8

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

4шт.

9

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

10

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

4шт.

Выбрано товаров: 10
