Запчасти Case IH SR200 (90.151.AK) - REAR VIEW MIRROR, EURO ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

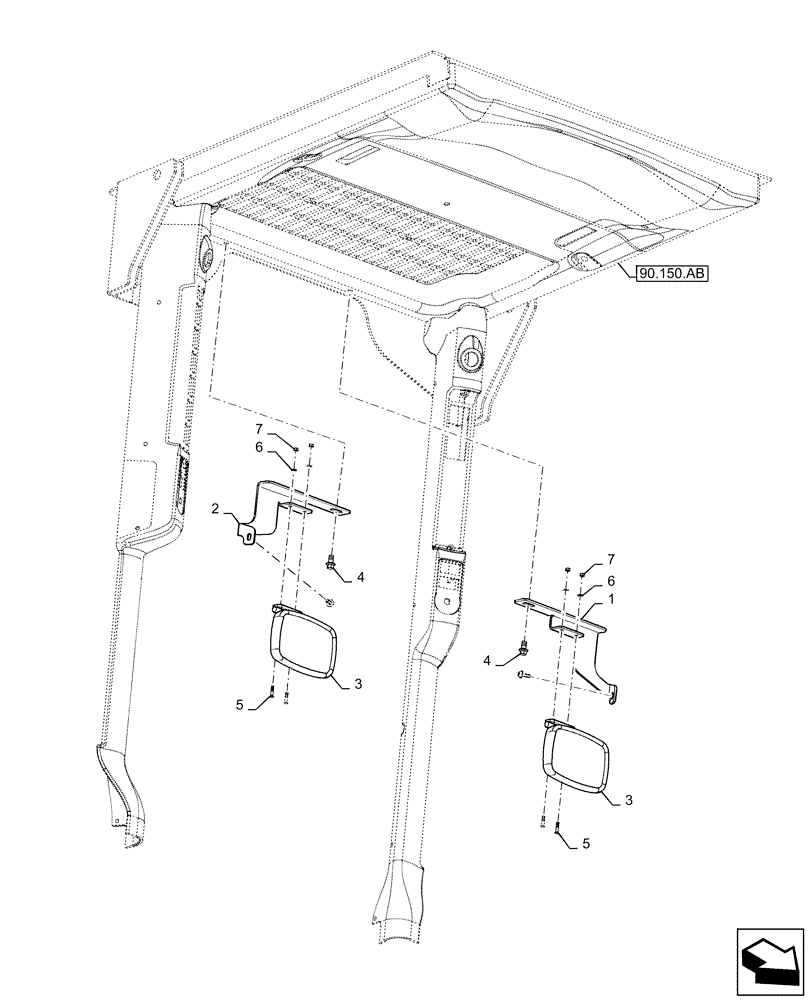

Схема запчастей Case IH SR200 - (90.151.AK) - REAR VIEW MIRROR, EURO ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
5
7
6
6
1
90.150.ab
4
7
3
2
4
5

Артикул

Название

Примечание

Количество

1

84369357

RH

BRACKET

1шт.

2

84369358

LH

BRACKET

1шт.

3

3962022

MIRROR,153mm L x 103mm W

Single, Used for Both Sides

2шт.

4

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

5

43646

SCREW,Phillips Drive, Flat HD, M4 x 20mm, Cl 4.8

4шт.

6

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

7

152799

NUT,Prev Torque, Hex, M4 x 0.7, Cl 5

4шт.
