Запчасти Case IH SR200 (55.404.AL[01]) - STANDARD , FRONT LIGHT, ASSY (55) - ELECTRICAL SYSTEMS

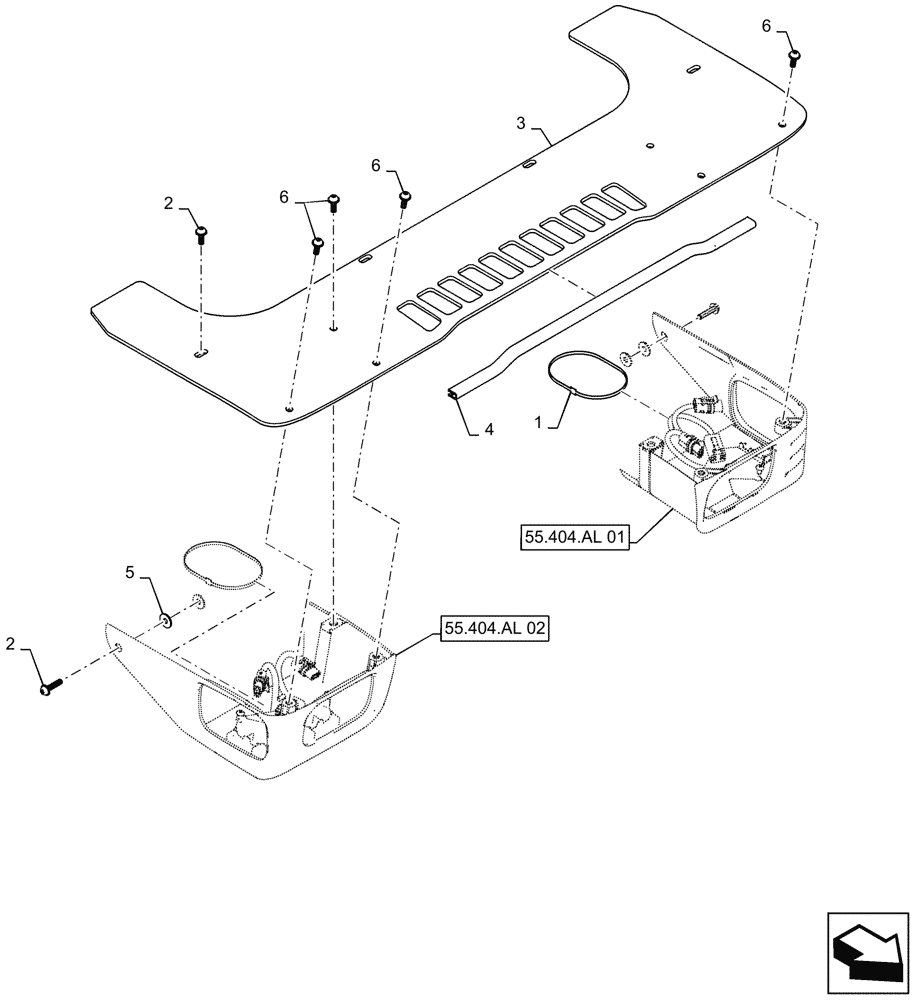

Схема запчастей Case IH SR200 - (55.404.AL[01]) - STANDARD , FRONT LIGHT, ASSY (55) - ELECTRICAL SYSTEMS
55.404.al 01
6
1
6
2
2
4
3
5
6
55.404.al 02

Артикул

Название

Примечание

Количество

1

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.

2

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

6шт.

3

84339366

Brow

BRACKET, SUPPORTING

1шт.

4

84353803

TRIM,30.48m Bulk

Cut to Length, 500mm L

1шт.

5

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

6

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

6шт.

Выбрано товаров: 6
