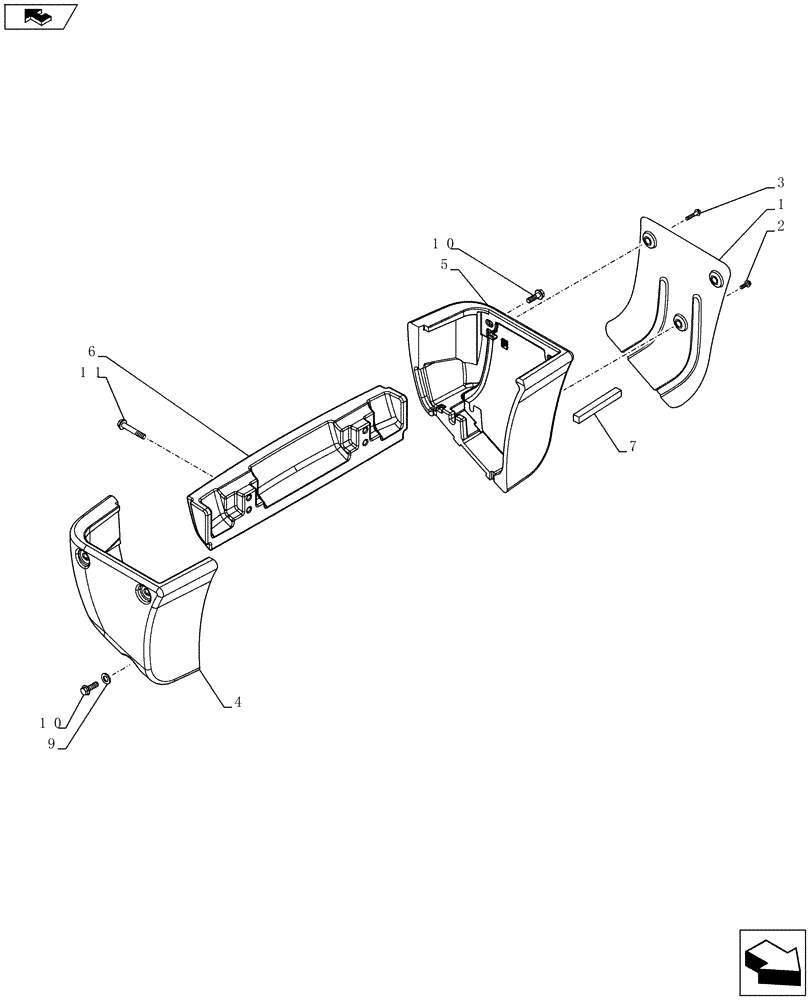

Запчасти Case IH SR200 (39.140.AM) - COUNTERWEIGHT (SR200) (39) - FRAMES AND BALLASTING

1

84273170

Battery Compartment, LH Side

COVER PLATE

1шт.

2

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

3

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

4

84274252

BUMPER

1шт.

5

84274254

BUMPER

1шт.

6

84274281

FRAME

1шт.

7

84355546

FOAM INSULATION,215mm L

1шт.

8

86625071

SPRING NUT,M10 x 1.5

3шт.

9

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

1шт.

10

87698849

BOLT,M16 x 50mm, Cl 10.9

6шт.

11

87698850

BOLT,M16 x 100mm, Cl 10.9

4шт.
