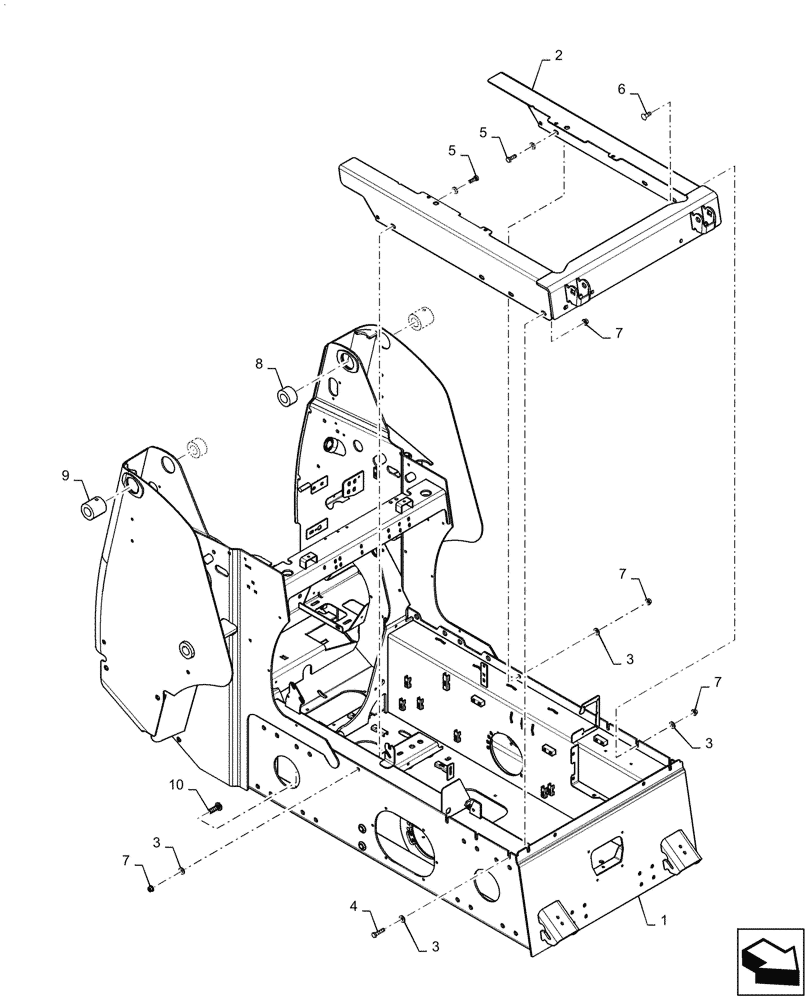

Запчасти Case IH SR200 (39.100.AB[02]) - CHASSIS (SR200) AFTER MAY 14, 2012 (39) - FRAMES AND BALLASTING

1

NS

NOT SERVICED

Lower Frame, Tan

1шт.

2

84309634

Upper, Radial, Gray

DRAWBAR FRAME

1шт.

3

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

14шт.

4

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

5

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

10шт.

6

87035385

CARRIAGE BOLT,Sht Sq Nk, M12 x 35mm, Cl 8.8, Full Thd

1шт.

7

86512497

FLANGE NUT,M12 x 1.75, Cl 10

12шт.

8

84201040

Upper frame to H-Link

HUB

2шт.

9

84331416

Upper Frame to H-Link

HUB

2шт.

10

84162937

STUD,M16 x 50mm, Cl 9.8

Axle Mounting

32шт.
