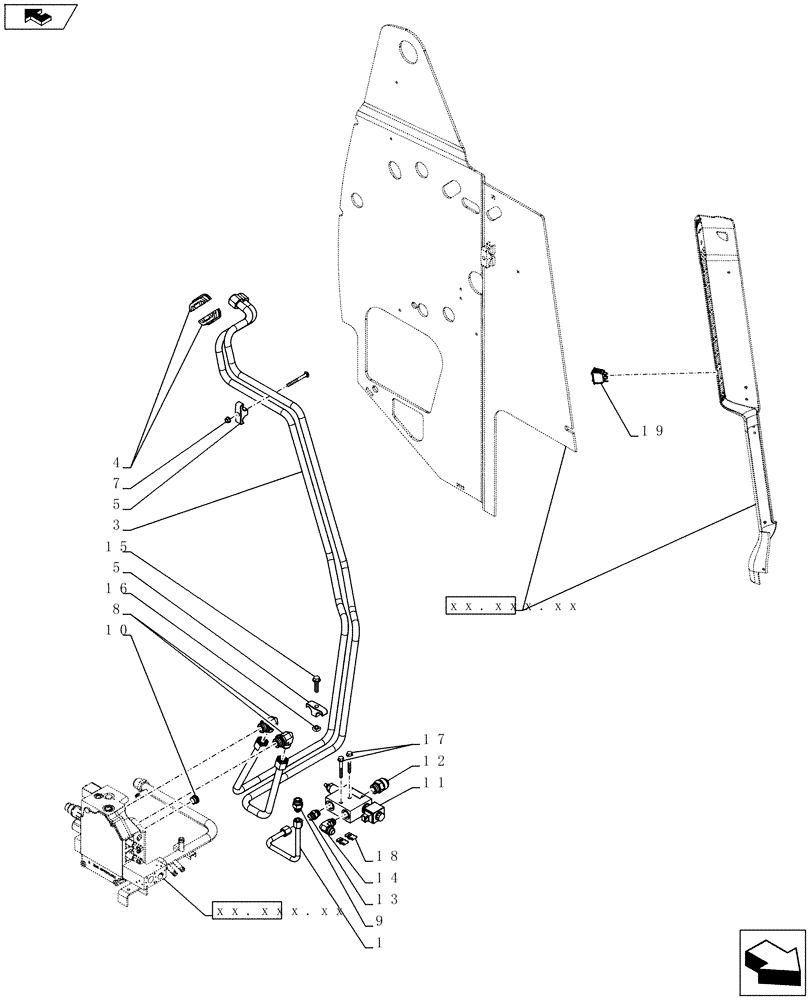

Запчасти Case IH SR200 (35.734.AH[03]) - AUX HYD, HIGH FLOW (SR175)(SR200) (35) - HYDRAULIC SYSTEMS

1

84186146

Assembly, HF Valve to LDR Valve

TUBE,12.7mm OD

1шт.

2

84186142

Assembly, Aux, LDR Valve to LFT Arm

TUBE

1шт.

3

84186144

Assembly, Aux, LDR Valve to LFT Arm

TUBE

1шт.

4

84362112

Hyd Tube

SUPPORT

2шт.

5

D124301

CLAMP,3/4" ID

2шт.

6

366046

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8

SSQ M8 X 80

1шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

8

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

9

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

10

84373460

PLUG,23.8mm OD

Load Check

1шт.

11

84256405

HYDRAULIC VALVE

HF Combiner

1шт.

12

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

13

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

14

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

15

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

16

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

17

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

18

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

19

84251427

SWITCH

Rocker, High Flow

1шт.
