Запчасти Case IH SR200 (35.734.AH[02]) - HYDRAULIC COUPLER, ARM PLUMBING (SR175,SR200,TR270) (35) - HYDRAULIC SYSTEMS

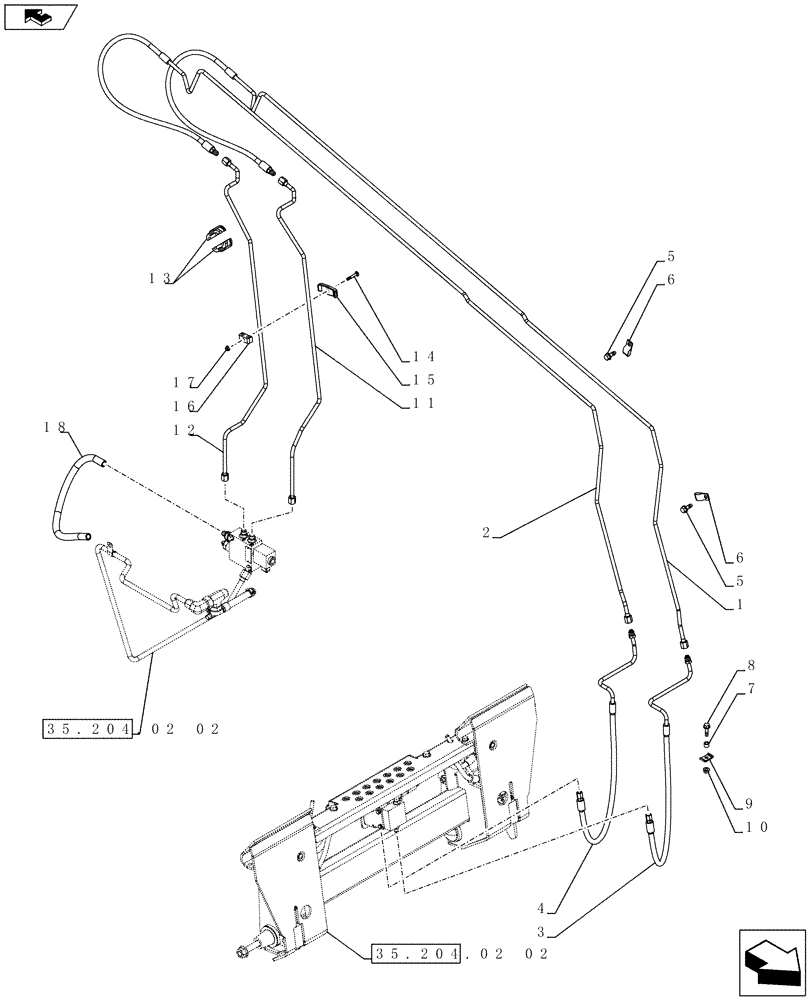

Схема запчастей Case IH SR200 - (35.734.AH[02]) - HYDRAULIC COUPLER, ARM PLUMBING (SR175,SR200,TR270) (35) - HYDRAULIC SYSTEMS
home
6
12
35.204.02 02
11
10
7
14
5
1
17
5
35.204.02 02
2
6
3
18
13
8
15
4
16
9

Артикул

Название

Примечание

Количество

1

84338470

Hydraulic Coupler

HYD TUBE

1шт.

2

84338472

Hydraulic Coupler

HYD TUBE

1шт.

3

84351545

HYD TUBE

Step Coupler

1шт.

4

84351547

HYD TUBE

Step Coupler

1шт.

5

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

6

605025

CLAMP,3/8", Coated, 3/8" Bolt

Insulated

2шт.

7

87342191

SPACER,9.25mm ID x 13.72mm OD x 9.53mm L

Spacer

1шт.

8

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

9

84254052

HOSE CLAMP,19.1mm W x 31.9mm L

Tube

1шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

11

84259529

Hydraulic Coupler

HYD TUBE

1шт.

12

84259531

Hydraulic Coupler

HYD TUBE

1шт.

13

84277054

Hydraulic Tube

BRACKET, SUPPORTING

2шт.

14

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

1шт.

15

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube

1шт.

16

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

Double

1шт.

17

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

18

84292314

Hydraulic Coupler Drain

HOSE,12.7mm ID x 460mm L

1шт.

Выбрано товаров: 18
