(35.353.AE[02]) - BRAKE PLUMBING (SR200)

Запчасти Case IH SR200 (35.353.AE[02]) - BRAKE PLUMBING (SR200) (35) - HYDRAULIC SYSTEMS

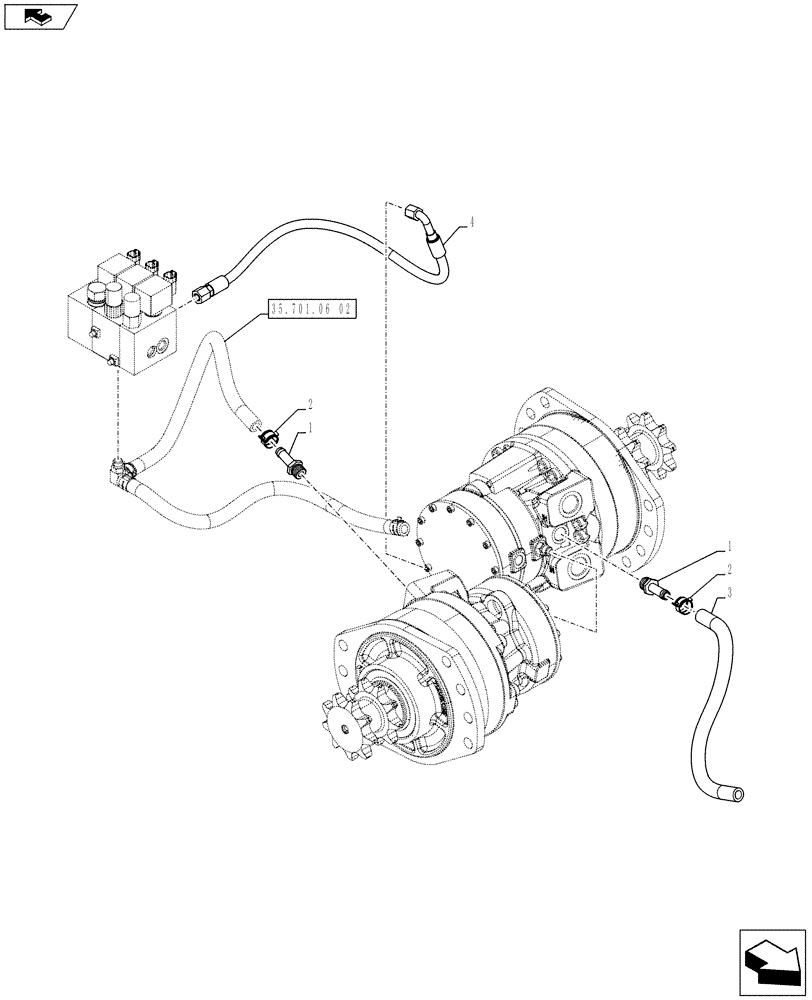

Схема запчастей Case IH SR200 - (35.353.AE[02]) - BRAKE PLUMBING (SR200) (35) - HYDRAULIC SYSTEMS
1
home
4
35.701.06 02
2
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87010108

FITTING,1/2" Hose Bead x 3/4" - 16 ORB

2шт.

2

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

2шт.

3

84259527

Case Drain

HOSE,12.7mm ID x 405.8mm L

1шт.

4

84257176

Brake

HOSE ASSY.,6.35mm ID x 656.4mm L, SAE 100R17

1шт.
