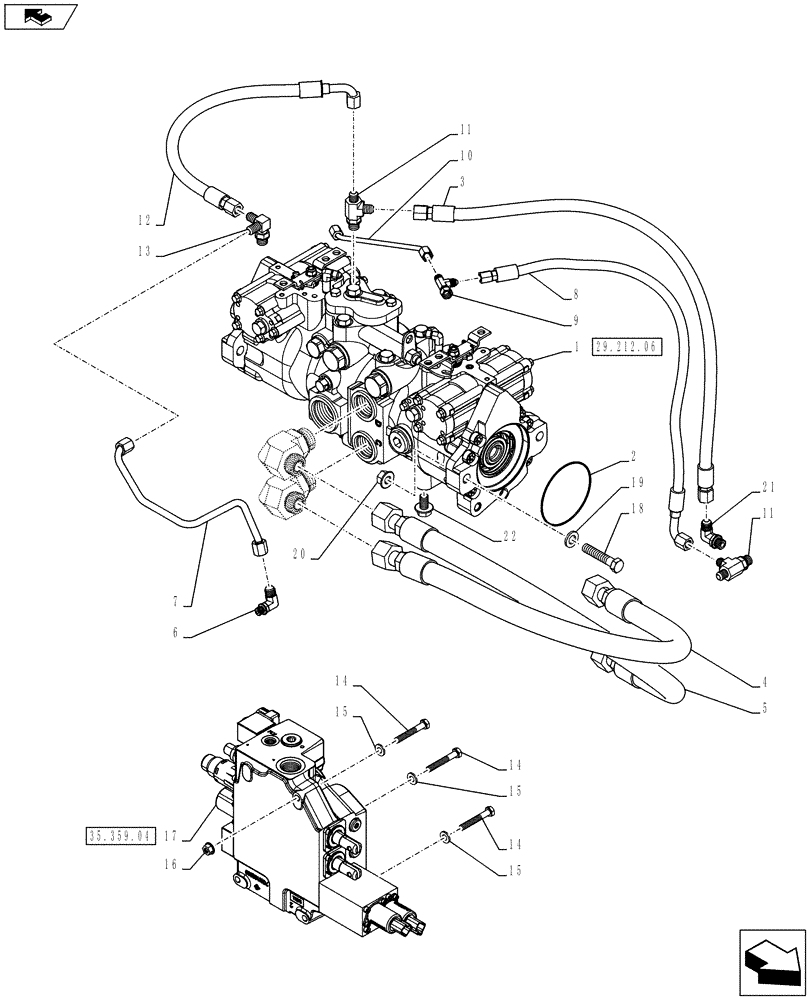

Запчасти Case IH SR200 (29.204.AB[02]) - MECHANICAL, PUMP, HAND CONTROL VALVE (SR200) (29) - HYDROSTATIC DRIVE

1

84322471

Tandem, 48cc MDC; See figures 29.212.06

HYDROSTATIC PUMP,46 CC

1шт.

2

87013729

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

1шт.

3

84257174

HOSE ASSY.,9.53mm ID x 765mm L, SAE 100R17

, Serial Range: Charge-Brake

1шт.

4

84258856

Assembly, Loop

FLEXIBLE HOSE,19.05mm ID x 867mm L, SAE 100R19

1шт.

5

84258846

Assembly, Loop

FLEXIBLE HOSE,19.05mm ID x 835mm L, SAE 100R19

1шт.

6

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

1шт.

7

84373389

RIGID TUBE,9.53mm OD

Assembly, EH, Aux Charge

1шт.

8

84257175

HOSE ASSY.,6.35mm ID x 650mm L, SAE 100R17

Brake

1шт.

9

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

10

87021277

TUBE,6.35mm OD x 124.9mm L, 37 Degree Flare

1шт.

11

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

12

84259516

FLEXIBLE HOSE,9.53mm ID x 482.3mm L, SAE 100R17

Assembly, LV, Interlock

1шт.

13

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

14

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

15

87655042

M8, 8.80 X 17.5 X 2.2 HTS

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

5шт.

16

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

17

84279514

Mech Control, EH, Aux; See Figure 35.359.04

HYDRAULIC VALVE

1шт.

18

9706693

BOLT,M12 x 60mm, Cl 8.8

2шт.

19

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

20

9804279

FLANGE NUT,Hex, M12, Cl 8

2шт.

21

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

22

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

Flange, M12 X 20 Full

1шт.
