Запчасти Case IH SR200 (90.154.AC) - OPEN CAB, NO HEAT OR HVAC (SR200,TR270) (90) - PLATFORM, CAB, BODYWORK AND DECALS

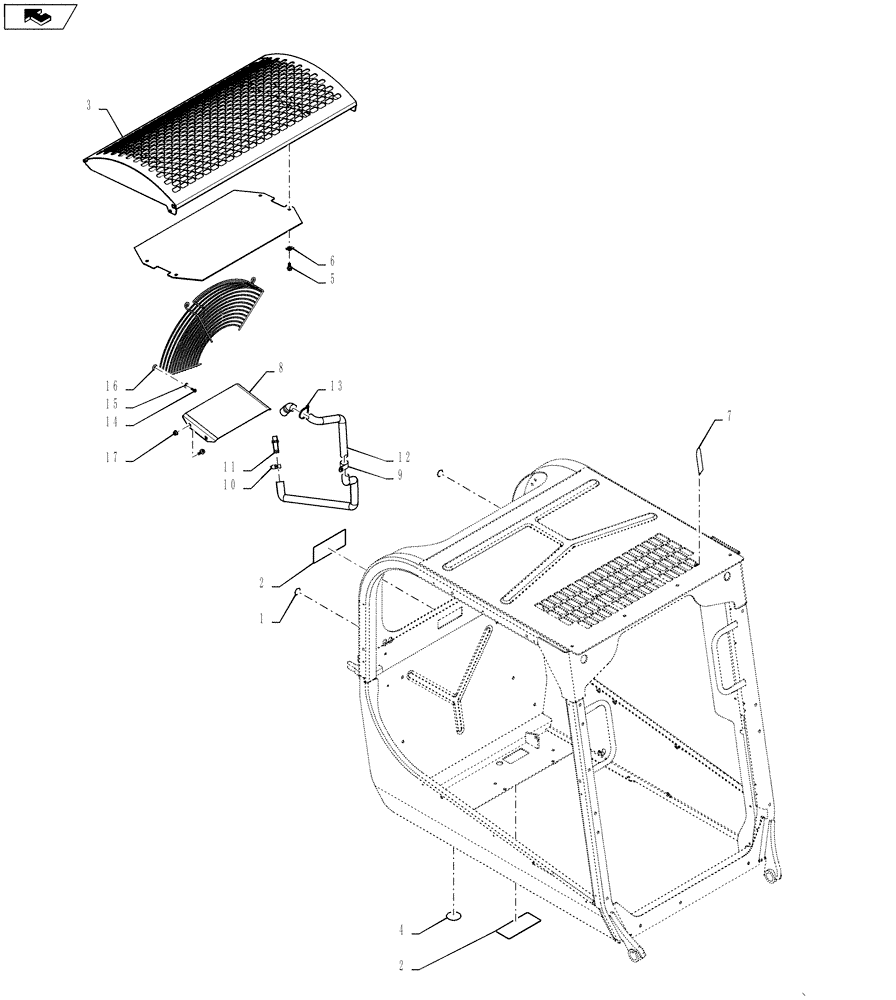

Схема запчастей Case IH SR200 - (90.154.AC) - OPEN CAB, NO HEAT OR HVAC (SR200,TR270) (90) - PLATFORM, CAB, BODYWORK AND DECALS
14
2
7
17
10
12
9
16
3
5
2
4
13
1
11
15
8
6
home

Артикул

Название

Примечание

Количество

1

414635A1

COVER,25.4mm OD x 0.51mm Thk

Lexan Gray

2шт.

2

84312310

COVER,165mm L x 70mm W x 1.70mm Thk

Plate, Gray

2шт.

3

84423420

No AC, Tilt Hood, Gray

HOOD

1шт.

4

84357636

DECAL,53mm OD, Gray

Plug

1шт.

5

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

8шт.

6

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

7

84353623

DECAL

HVAC Blank

1шт.

8

84366054

BRACKET

Heat Shield

1шт.

9

86637995

CLAMP,27mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

10

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

11

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

12

84333356

TUBE

Heater, Loop

1шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Nylon Tie, 7-8in

1шт.

14

84137412

SCREW,Hex Flng, M6 x 18mm

Bosscrew, M6 X 18

3шт.

15

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

16

84335903

Fan

GUARD

1шт.

17

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

Выбрано товаров: 17
