Запчасти Case IH SR200 (90.124.AE[01]) - SEAT, AIR SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

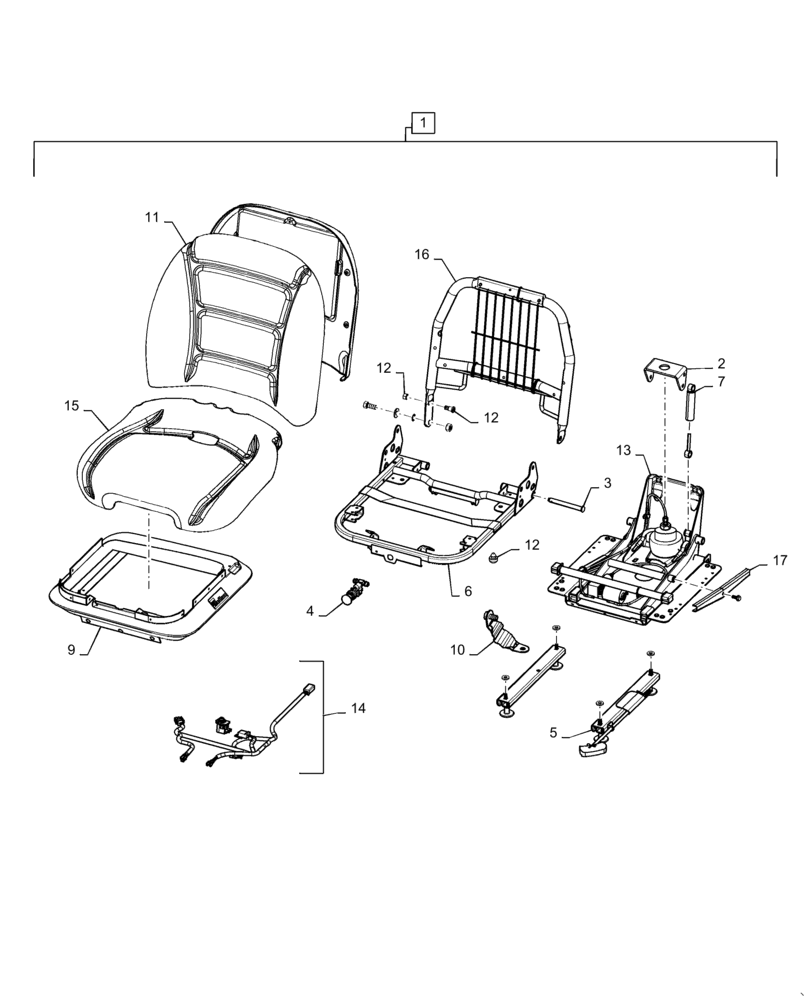

Схема запчастей Case IH SR200 - (90.124.AE[01]) - SEAT, AIR SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
17
11
2
14
16
5
6
12
1
12
15
3
4
7
12
9
10
13

Артикул

Название

Примечание

Количество

1

47501226

Air Suspension, Complete, Incl 2 - 16

DRIVER SEAT

1шт.

2

84559417

SERVICE KIT

Spring And Saddle

1шт.

3

84559392

SERVICE KIT

Shaft / Bearing

1шт.

4

84518876

SERVICE KIT

Air Valve

1шт.

5

84559416

SERVICE KIT

Slide

1шт.

6

84540792

SERVICE KIT

Seat Frame

1шт.

7

84559410

SERVICE KIT

Shock Absorber

1шт.

8

84540796

SERVICE KIT

Compressor, Not Illustrated

1шт.

9

84559402

SERVICE KIT

Boot

1шт.

10

84551065

SERVICE KIT

Tether

1шт.

11

84559413

SERVICE KIT

Back Cushion, Cloth

1шт.

12

47428271

SERVICE KIT

Bumper And Pivot

1шт.

13

NSS

NOT SOLD SEPARAT

Suspension Base, Incl in 1

1шт.

14

84551068

SERVICE KIT

Seat Switch, Includes Harness

1шт.

15

84559400

SERVICE KIT

Seat Cushion, Cloth, Includes Water Drain

1шт.

16

84559409

SERVICE KIT

Back Frame

1шт.

17

84211650

KIT

Scissor Mechanism

1шт.

Выбрано товаров: 17
