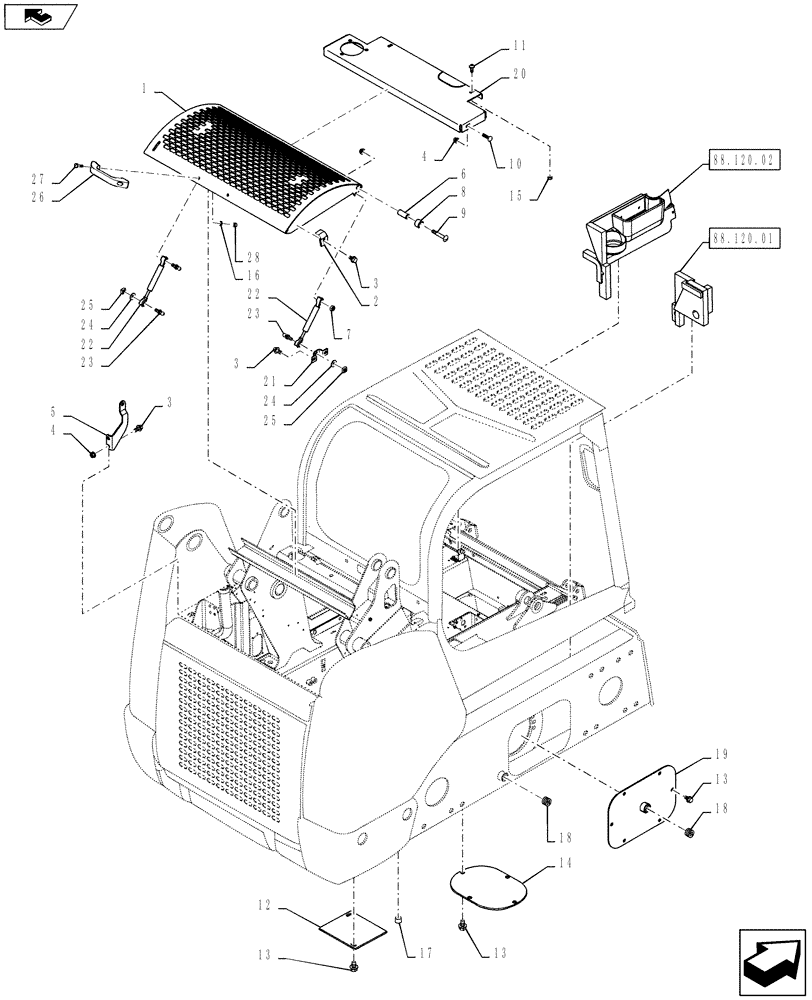

Запчасти Case IH SR200 (90.100.AU) - HOODS AND COVERS (SR175,SR200) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84371087

Tilt

HOOD

1шт.

2

84420534

Angle, Hood Stop

STOP

2шт.

3

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

M8 X 15

6шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

5

84313073

Angle, Hood

LOCKING TAB

1шт.

6

259905A1

SPACER

1/4 SCH 40 Pipe

2шт.

7

43362

NUT,M8 x 1.25, Cl 10

3шт.

8

87429698

SPACER

Hood

2шт.

9

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

M6x16 Torx, Panel

2шт.

10

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

11

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

M6x16 Torx, Panel

3шт.

12

84299809

Plumbing Access, Power Tan

COVER PLATE

1шт.

13

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

18шт.

14

84299800

Gray

COVER PLATE

1шт.

15

86511444

FLANGE NUT,Hex, M6 x 1

Chassis Vent, RH

2шт.

16

86625264

LOCK WASHER,Ext Tooth, M5

Chassis Vent, LH

2шт.

17

236622

PLUG,3/8" - 18 NPT

Hex SKT Pipe, 3/8

2шт.

18

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

1/2 NPTF

4шт.

19

84421075

With Bung, Tan

COVER PLATE

2шт.

20

84201355

Panel W, Rear Deck

PANEL

1шт.

21

84356838

Angle, Strut Mounting

MOUNTING PLATE

1шт.

22

400473A1

CYLINDER ASSY.,186.84mm L, Extended, 148.74mm L, Compressed

Hood Assist

2шт.

23

189609A1

BALL STUD,M8 x 1.25

Ball, Metric 10mm

4шт.

24

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

25

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square, M8

1шт.

26

406256A1

HANDLE

Rear Hood

1шт.

27

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

Rear Hood

2шт.

28

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

Rear Hood

2шт.
