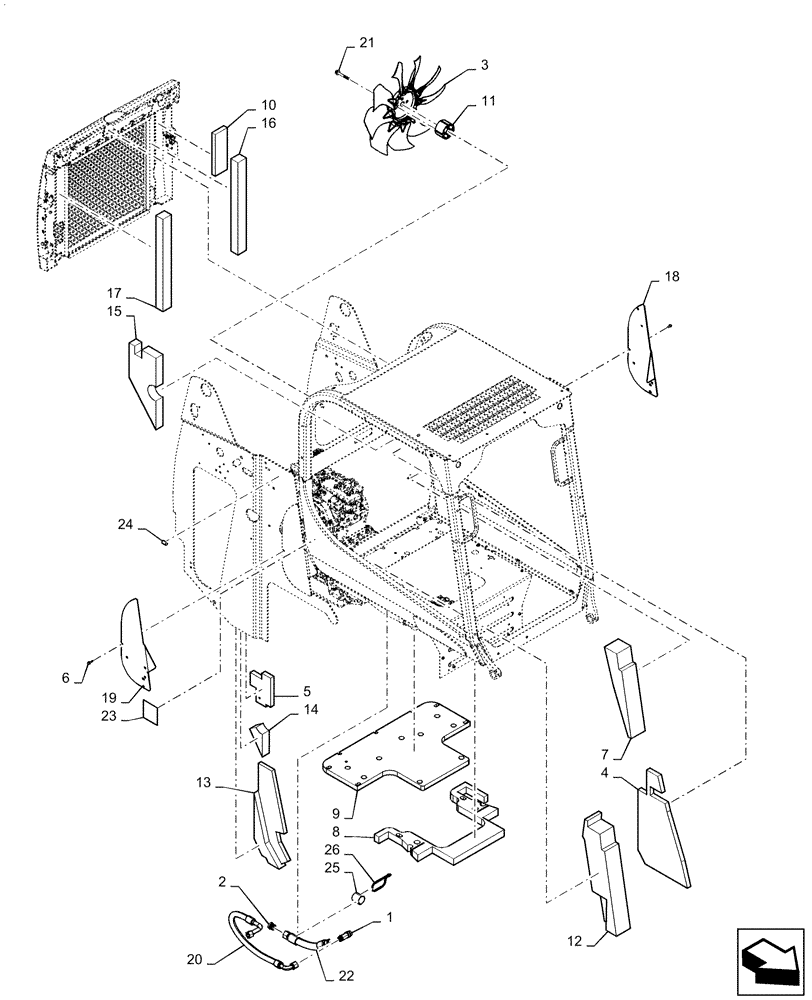

Запчасти Case IH SR200 (88.100.10[15]) - ENGINE ACCESSORIES EU/OPEN EU (SR200,TR270) (88) - ACCESSORIES

1

219604

TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

2

9790527

PLUG,1-5/16" - 12 JIC

1шт.

3

47488899

Clockwise Pusher 480 EURO

FAN,9 Blades, 480mm OD

1шт.

4

47638265

Tower, LH Front

FOAM INSULATION

1шт.

5

47638695

RH Tower Front

FOAM INSULATION

1шт.

6

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

7

84366338

LH Tower Front

FOAM INSULATION

1шт.

8

84366352

Heel Plate Vertical

FOAM INSULATION

1шт.

9

84372040

FOAM

Seat Pan, used only with Open Cab

1шт.

10

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

1шт.

11

84373345

Fan

SPACER

1шт.

12

84374169

Right Tower Front

FOAM INSULATION

1шт.

13

84374171

Tower RH

FOAM INSULATION

1шт.

14

84374179

Tower RH Lower

FOAM INSULATION

1шт.

15

84374180

Tower LH

FOAM INSULATION

1шт.

16

84374183

RR Door LH

FOAM INSULATION

1шт.

17

84374184

Rear Door RH

FOAM INSULATION

1шт.

17

84374184

RR Door RH

FOAM INSULATION

1шт.

18

84383823

Chassis Vent LH

COVER

1шт.

19

84383826

Chassis Vent RH

COVER

1шт.

20

84544550

Valve Supply

HOSE ASSY.,19.05mm ID x 905mm L, SAE 100R17

1шт.

21

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

4шт.

22

87351645

HOSE ASSY.,417mm L

Resonator

1шт.

23

87353967

DECAL,LWA 101DB, 100mm x 110 mm

1шт.

24

87461957

STOP

Stop

1шт.

25

87595771

Rubber

ISOLATOR,200mm L x 50mm W x 3.2mm Thk

1шт.

26

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.
