Запчасти Case IH SR200 (55.512.CL[02]) - LEVEL 100 HANDLE GRIPS, 1-SPEED MECH CONTROLS (55) - ELECTRICAL SYSTEMS

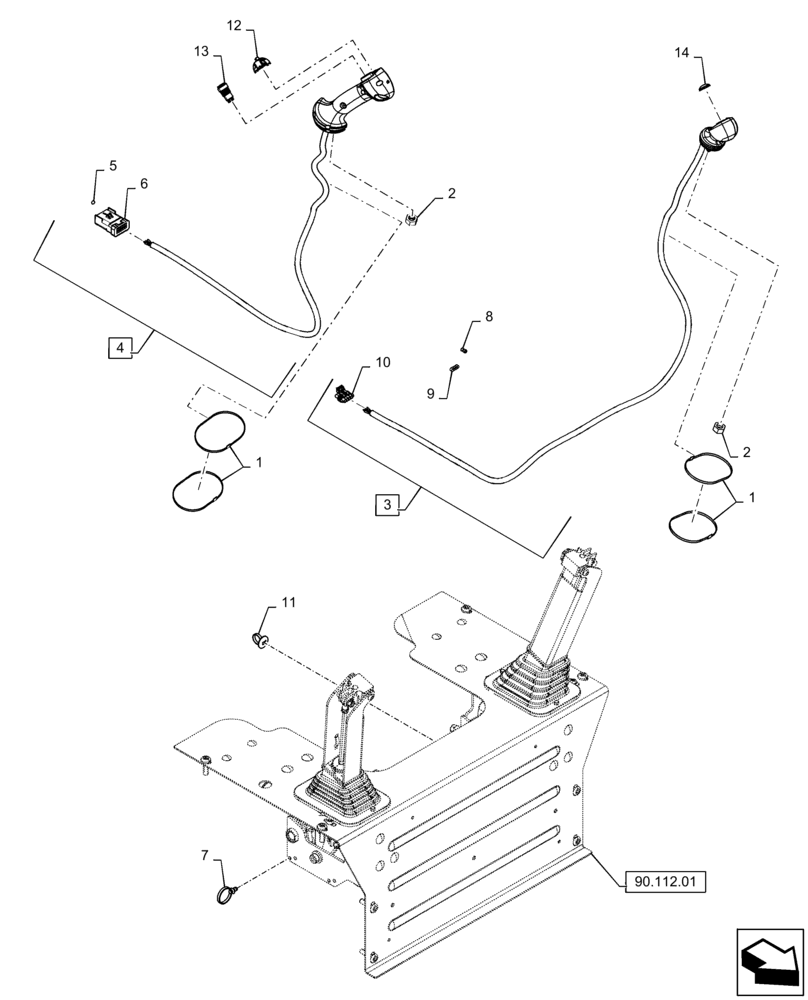

Схема запчастей Case IH SR200 - (55.512.CL[02]) - LEVEL 100 HANDLE GRIPS, 1-SPEED MECH CONTROLS (55) - ELECTRICAL SYSTEMS
90.112.01
1
10
12
2
14
5
11
1
7
2
4
13
9
3
8
6

Артикул

Название

Примечание

Количество

1

263117

CABLE TIE,292.1mm L, Nylon, Black

Nylon

4шт.

2

9706685

NUT,M12 x 1.75, Cl 8

2шт.

3

84201270

Case Level 100 LH, Incl 14

HANDLE GRIP

1шт.

4

84201273

Case Level 100 RH, Incl 12 - 13

HANDLE GRIP

1шт.

5

84279937

PLUG,Apex, 2.80mm

5шт.

6

87382923

ELEC CONNECTOR,Male, 10 Cavities

1шт.

7

87668737

CABLE TIE,203.2mm L, Nylon, Black

5шт.

8

87689636

PLUG,Red, Taxi Seal Connector Cavity

2шт.

9

87689643

CLIP,4.8mm ID

Black Secondary Lock

1шт.

10

87697724

ELEC CONNECTOR,Female, 4 Cavities

1шт.

11

378884A2

STRAP,254mm L

Nylon

3шт.

12

84296544

SWITCH

Auxiliary Hydraulic Proportional

1шт.

13

87630127

SWITCH

Parking Brake

1шт.

14

84296542

SWITCH ASSY

Horn

1шт.

Выбрано товаров: 14
