(55.202.AE[02]) - BLOCK HEATER EU (SR200-TV380)

Запчасти Case IH SR200 (55.202.AE[02]) - BLOCK HEATER EU (SR200-TV380) (55) - ELECTRICAL SYSTEMS

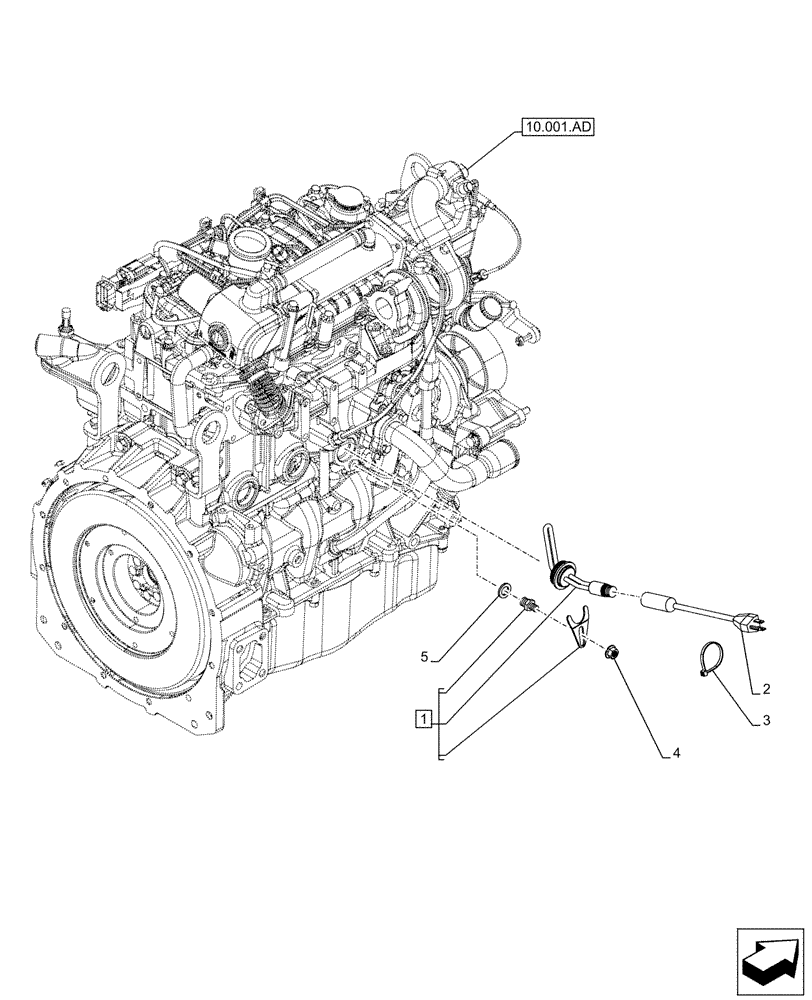

Схема запчастей Case IH SR200 - (55.202.AE[02]) - BLOCK HEATER EU (SR200-TV380) (55) - ELECTRICAL SYSTEMS
3
1
5
4
10.001.ad
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87719400

HEATER,820W - 230V

Assembly

1шт.

2

87693858

CABLE,Heater, 820W - 120V

Block Heater

1шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Nylon Tie 7-8in

1шт.

4

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

5

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

1шт.

Выбрано товаров: 5
