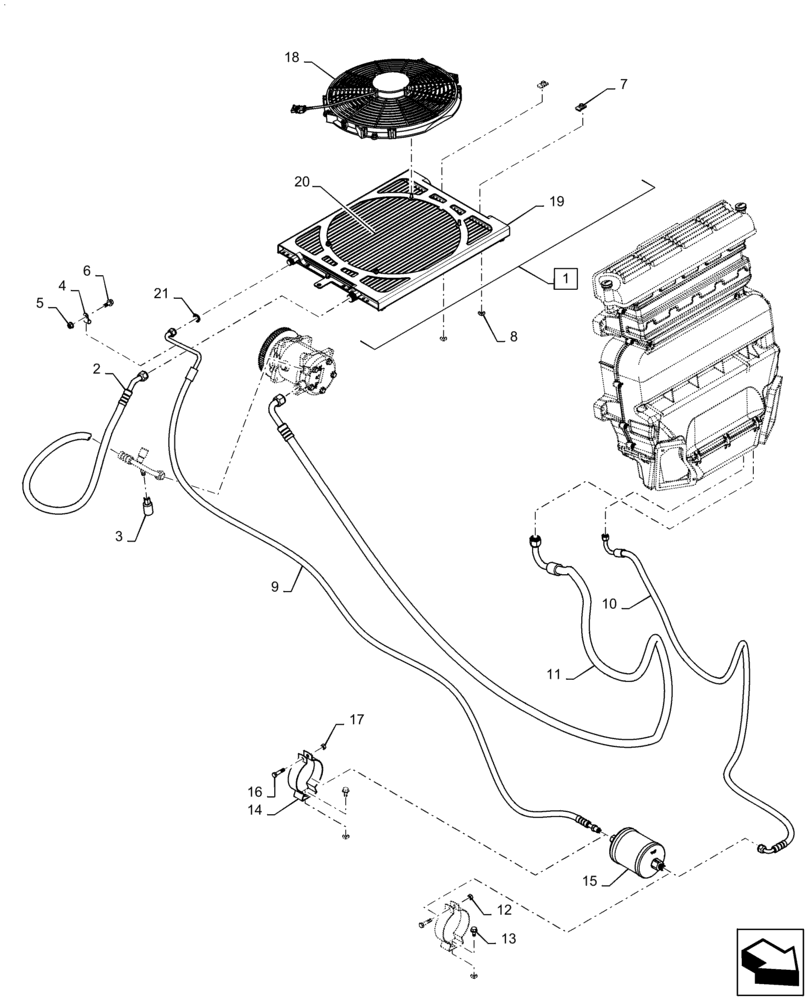

Запчасти Case IH SR200 (50.200.BY) - AIR CONDITIONING BASIC PLUMBING (SR200, TR270) (50) - CAB CLIMATE CONTROL

1

84312881

Assy. W/Fan, Incl 18 - 20, Years: -10-FEB-13

CONDENSER

1шт.

1

47376521

CONDENSER

Assy. W/Fan, Incl 18 - 20, Start Year: 11-FEB-13

1шт.

2

84317965

AC Discharge

A/C HOSE

1шт.

3

87000227

SWITCH, A/C HIGH PRE

1шт.

4

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

7

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

8

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

9

84352508

Assembly, AC Liquid

HOSE

1шт.

10

84403037

AC Discharge

HOSE ASSY.

1шт.

11

84372625

AC Suction

HOSE ASSY.,19.05mm ID x 2976mm L

1шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

13

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

14

87105841

BRACKET

HVAC

2шт.

15

295006A1

RECEIVER-DRYER

1шт.

16

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

17

9706690

NUT,M8 x 1.25, Cl 8

2шт.

18

47395178

FAN

1шт.

19

84534059

MOUNT

Bracket, Condenser And Fan

1шт.

20

47395175

CONDENSER

1шт.

21

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.
