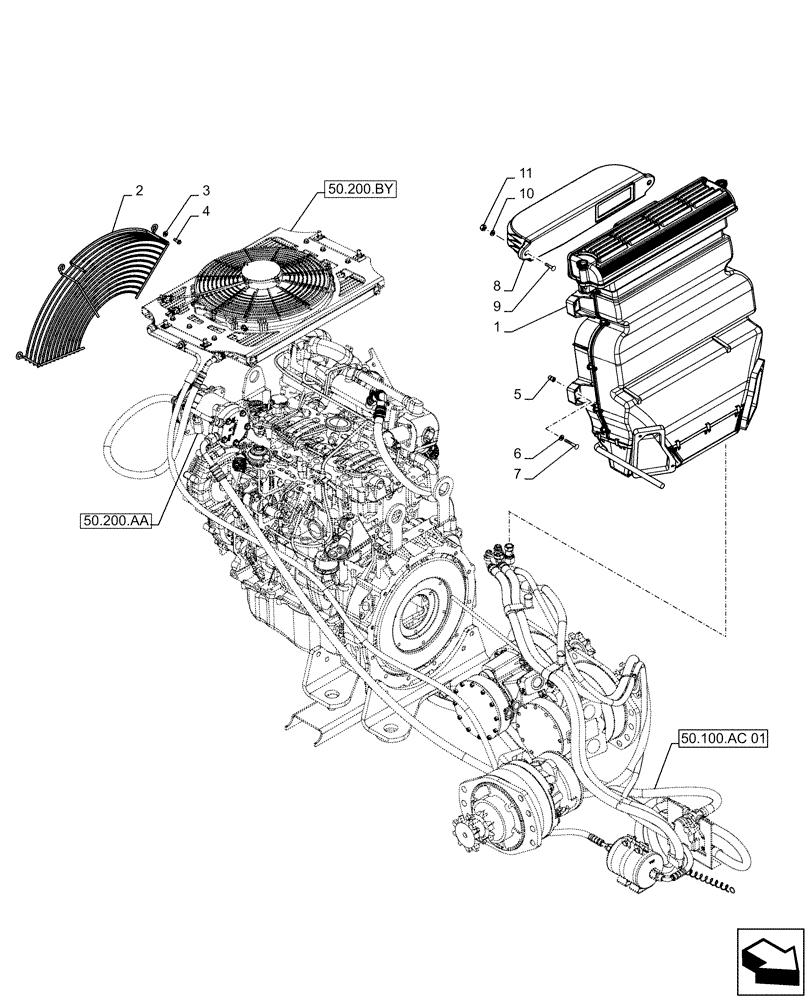

Запчасти Case IH SR200 (50.100.AP[03]) - HVAC, MEDIUM FRAME F5C (SR200,TR270) (50) - CAB CLIMATE CONTROL

1

84267543

STEP

HEATER

1шт.

2

84280313

AIR DUCT

BRACKET

1шт.

3

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

ANGLE JOINT

2шт.

4

87655042

ROD

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

5

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

HEXAGON NUT

2шт.

6

84331307

ANGLE JOINT

SCREEN

1шт.

7

84335903

PIN

GUARD

1шт.

8

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

CUP SPRING

4шт.

9

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

10

84137412

SCREW,Hex Flng, M6 x 18mm

3шт.

11

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

12

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

13

86511833

SCREW,Phillips Drive, Pan HD, M6 x 40mm

4шт.

14

87436247

THREADED INSERT

4шт.
