Запчасти Case IH SR175 (10.210.AF) - FUEL LINES (18-JUN-2015 & NEWER) (10) - ENGINE

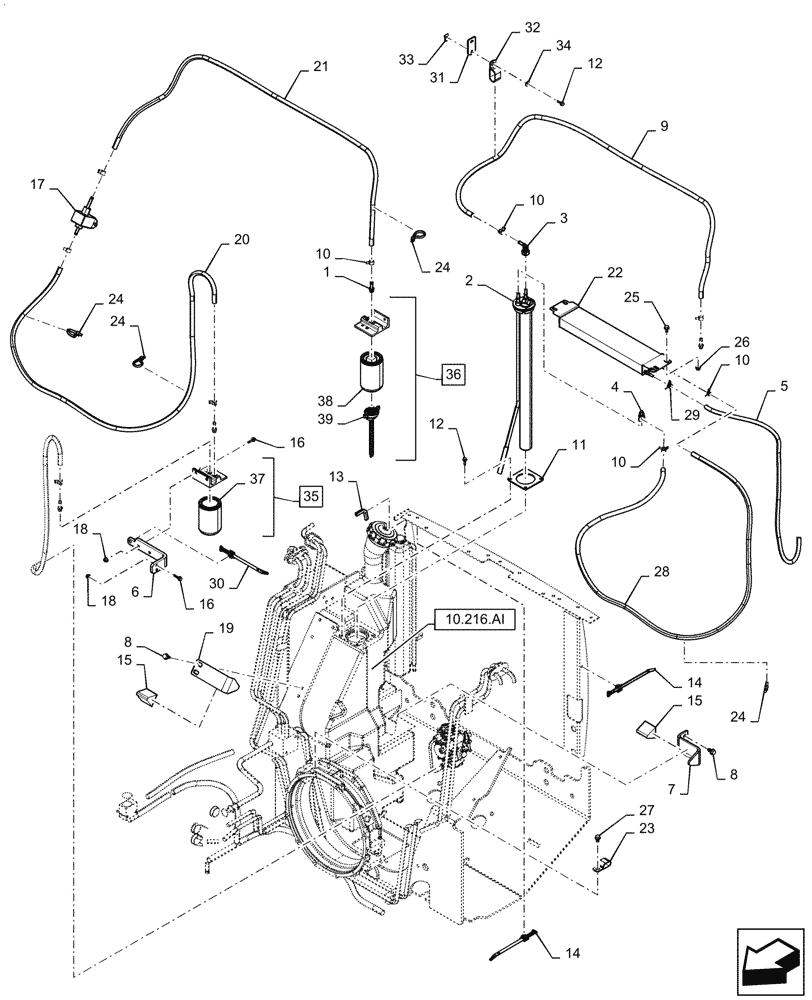

Схема запчастей Case IH SR175 - (10.210.AF) - FUEL LINES (18-JUN-2015 & NEWER) (10) - ENGINE
30
2
15
14
8
6
16
28
22
8
10
12
36
25
10
15
14
33
10
27
21
18
24
37
20
26
9
11
32
4
18
10
5
38
34
23
13
24
12
35
29
24
10.216.ai
31
17
3
7
1
16
19
39
24

Артикул

Название

Примечание

Количество

1

9844342

FITTING,7/16" - 20 x 8mm Hose x 41.90mm OAL, Incl O-Ring

2шт.

2

47747587

SENDER UNIT

Fuel

1шт.

3

84350218

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 3/8" Voss

1шт.

4

84350217

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 5/16" Voss

1шт.

5

47394323

FUEL HOSE

Cut to Length, 3.18 FT

1шт.

6

47439923

Engine Bay Fuel Filter Mounting

BRACKET

1шт.

7

47710480

Fuel Tank Support

BRACKET

1шт.

8

637964

SELF-TAP SCREW,Hex, 3/8" - 16 x 3/4"

4шт.

9

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Cut to Length, 5.71 FT

1шт.

10

87436932

CLAMP,13.9mm - 15.5mm, Spring

8шт.

11

84338049

MOUNTING PLATE

Fuel Sending Unit

1шт.

12

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

8шт.

13

87702286

TRIM,Bulk, 1/8" x 30480mm L

1шт.

14

84259663

CABLE TIE,228.6mm L, Nylon, Black

5шт.

15

84602030

PAD

Foam

2шт.

16

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

6шт.

17

47465735

FUEL PUMP,12V, 1.4A

1шт.

18

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

8шт.

19

84273624

Fuel Tank

BRACKET

1шт.

20

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Cut to Length, 6.23 FT

1шт.

21

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Cut to Length, 5.5 FT

1шт.

22

47402238

FUEL COOLER

519.4mm L

1шт.

23

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

1шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

5шт.

25

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

26

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

27

86512520

BOLT,Hvy Hex, M8 x 12mm, Cl 8.8, Full Thd

1шт.

28

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Cut to Length, 6.92 FT

1шт.

29

87436933

CLAMP,11.7mm - 13.9mm

2шт.

30

84379484

CABLE TIE,228.6mm L, Nylon, Black

1шт.

31

84473111

BRACKET

Window, Gray

1шт.

32

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

Insulated, Double

1шт.

33

86625073

SPRING NUT,M6 x 1

2шт.

34

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

35

84299976

FILTER ASSY

Engine Bay, Incl 37

1шт.

36

84559030

FUEL FILTER

Door, Incl 38, 39

1шт.

37

84299977

ELEMENT

Engine Bay Fuel Filter

1шт.

38

84561653

FUEL FILTER

Door, Element

1шт.

39

84527833

WIF

SENSOR

1шт.

Выбрано товаров: 39
