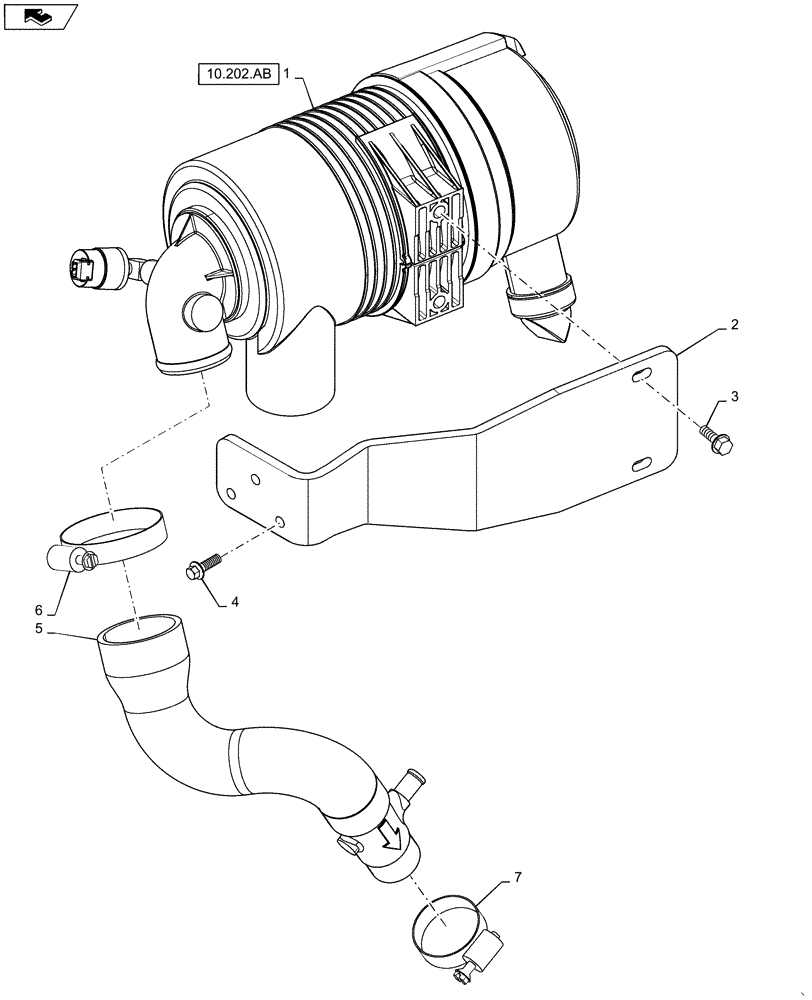

Запчасти Case IH SR175 (10.202.AD) - AIR CLEANER - AIR INTAKE PARTS (10) - ENGINE

1

84531776

AIR CLEANER

Assembly

1шт.

See Figure 10.202.AB For Service Parts

1шт.

2

84539243

BRACKET

Air Cleaner

1шт.

3

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

4

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

3шт.

5

84532215

HOSE

Intake Air, Air Cleaner To Turbo

1шт.

6

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

1шт.

7

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.
