Запчасти Case IH SR175 (90.100.BI[02]) - REAR HOOD AND CHASSIS ACCESS COVER 23-JUN-2017 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

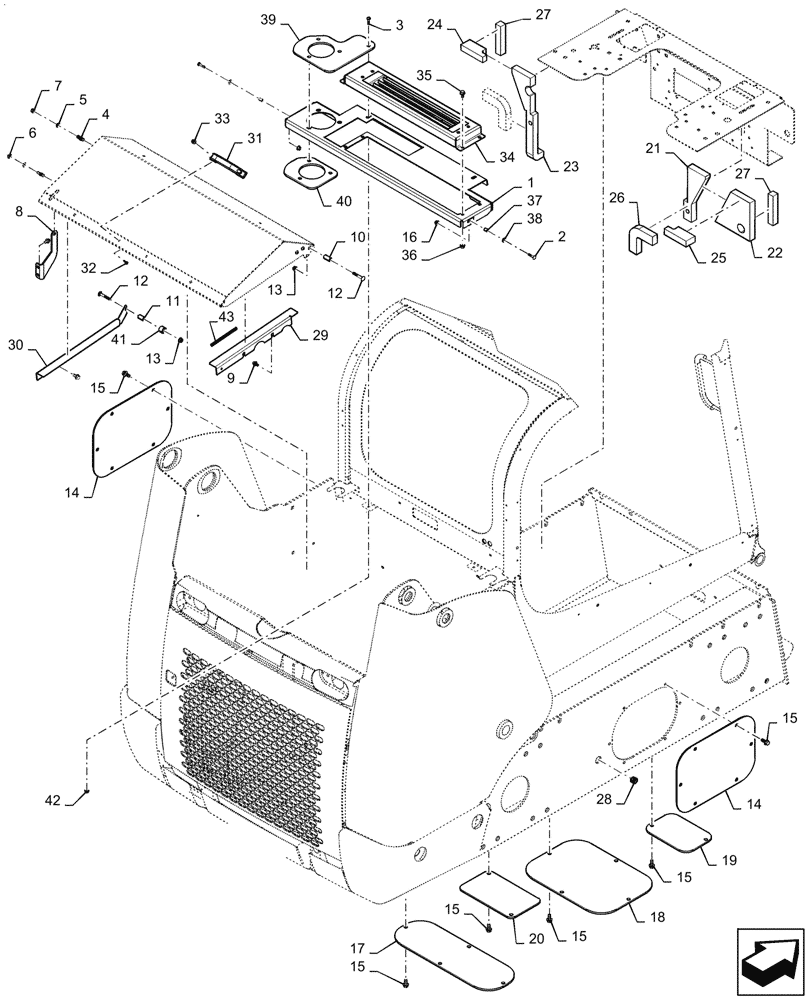

Схема запчастей Case IH SR175 - (90.100.BI[02]) - REAR HOOD AND CHASSIS ACCESS COVER 23-JUN-2017 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
17
25
32
27
5
24
41
31
13
3
19
22
4
21
12
1
18
16
7
10
12
23
38
6
14
14
35
15
20
8
15
39
37
29
26
13
15
2
15
28
27
33
30
36
34
43
15
9
40
15
42

Артикул

Название

Примечание

Количество

1

47613800

Rear Deck, Gray

ANGLE

1шт.

2

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

3

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

2шт.

4

47974869

BALL STUD,M8 x 1.25 x 32.2mm L, 10mm Ball OD

2шт.

5

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

6

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

7

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

8

47467486

Hood Lock Tab, CE Gray

ANGLE

1шт.

9

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

5шт.

10

47513620

SPACER,Pipe, 9.25mm ID x 13.72mm OD x 28.58mm L

1шт.

11

47513565

SPACER,Pipe, 9.25mm ID x 13.72mm OD x 23.81mm L

1шт.

12

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

2шт.

13

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

14

84295151

COVER PLATE,400mm L x 280mm W x 4.75mm Thk

2шт.

15

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

24шт.

16

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

17

47717894

PLATE,524.6mm L x 174.6mm W x 6.35mm Thk

1шт.

18

47717914

PLATE,431.6mm L x 303.6mm W x 6.35mm Thk

1шт.

19

47717905

PLATE,225mm L x 150mm W x 6.35mm Thk

1шт.

20

47717909

PLATE,275mm L x 160mm W x 6.35mm Thk

1шт.

21

84372629

FOAM INSULATION

RH Heel Plate

1шт.

22

84287773

FOAM INSULATION

RH Filler

1шт.

23

48013159

FOAM INSULATION

LH Heel Plate

1шт.

24

47875089

FOAM INSULATION

LH Upper Chassis Filler

1шт.

25

47875087

FOAM INSULATION

RH Upper Chassis Filler

1шт.

26

47874957

FOAM INSULATION,177.8mm L x 38.1mm W x 25.4mm Thk

Chassis Filler

2шт.

27

47870227

FOAM INSULATION,130mm L x 25.4mm W x 25.4mm Thk

Chassis Filler

2шт.

28

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

6шт.

29

84605091

SUPPORT

Hood Stop

1шт.

30

47363956

ANGLE

LH, Hood Stop

1шт.

31

406256A1

HANDLE

Rear Hood

1шт.

32

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

33

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

34

47403606

ANGLE

Rear Deck

1шт.

35

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

36

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

37

47435764

SPACER,6.3mm ID x 9.5mm OD x 13mm L

2шт.

38

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

2шт.

39

47434237

Stiffner Rear Deck

BRACKET

1шт.

40

47434973

W, Stiffner, Gray

BRACKET

1шт.

41

47513658

SPACER,13.87mm ID x 21.34mm OD x 15.88mm L

1шт.

42

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

43

87702286

Cut To Length, 220mm

TRIM,Bulk, 1/8" x 30480mm L

1шт.

Выбрано товаров: 43
