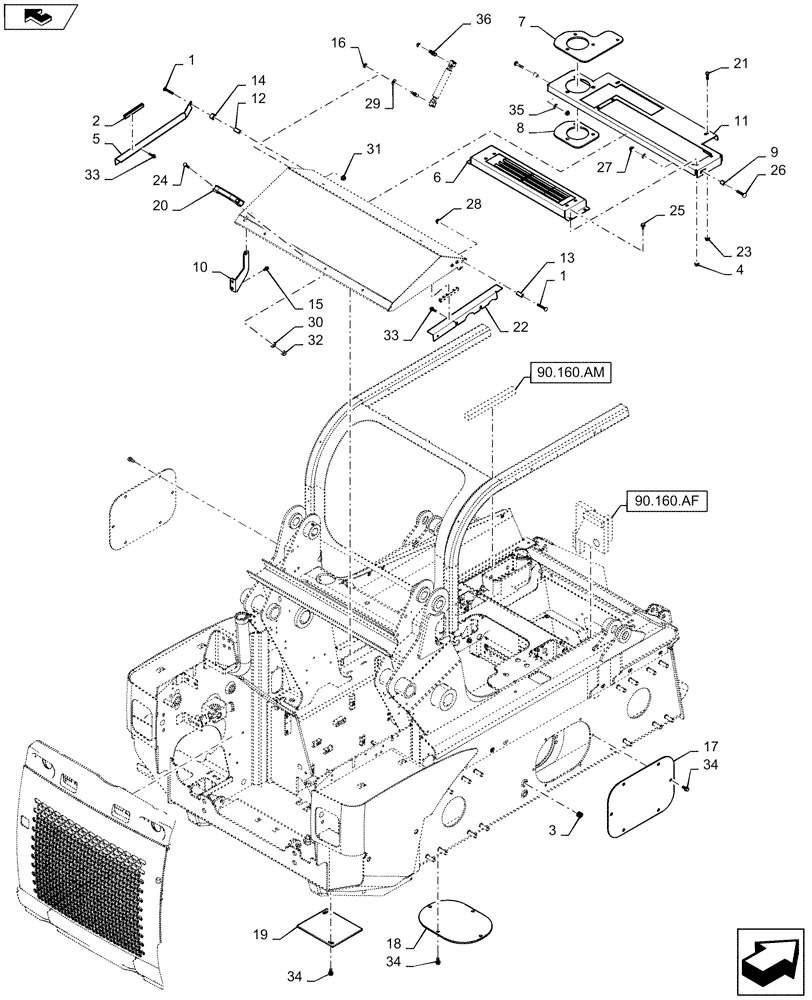

Запчасти Case IH SR175 (90.100.BI[01]) - REAR HOOD AND CHASSIS ACCESS COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

2шт.

2

291186

PROTECTION STRIP,9.9mm W

Channel Edge

1шт.

3

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

6шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

5

47363956

ANGLE

Hood Stop

1шт.

6

47403606

ANGLE

Rear Deck

1шт.

7

47434237

Stiffner, Rear Deck

BRACKET

1шт.

8

47434973

w/ Stiffner

BRACKET

1шт.

9

47435764

SPACER,6.3mm ID x 9.5mm OD x 13mm L

2шт.

10

47467486

Hood Lock Tab

ANGLE

1шт.

11

47495674

Rear Deck

ANGLE

1шт.

12

47513565

SPACER,Pipe, 9.25mm ID x 13.72mm OD x 23.81mm L

1шт.

13

47513620

SPACER,Pipe, 9.25mm ID x 13.72mm OD x 28.58mm L

1шт.

14

47513658

SPACER,13.87mm ID x 21.34mm OD x 15.88mm L

1шт.

15

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

16

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

17

84295151

Hood

COVER PLATE,400mm L x 280mm W x 4.75mm Thk

2шт.

18

84299800

COVER PLATE

1шт.

19

84299809

Plumbing Access

COVER PLATE

1шт.

20

406256A1

HANDLE

Rear Hood

1шт.

21

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

2шт.

22

84605091

SUPPORT

Stop

1шт.

23

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

24

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

25

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

26

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

27

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

28

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

29

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

30

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

31

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

32

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

33

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

3шт.

34

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

18шт.

35

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

2шт.

36

189609A1

BALL STUD,M8 x 1.25

2шт.
