Запчасти Case IH SR175 (90.100.AD) - AIR CONDITIONER BRACKET (90) - PLATFORM, CAB, BODYWORK AND DECALS

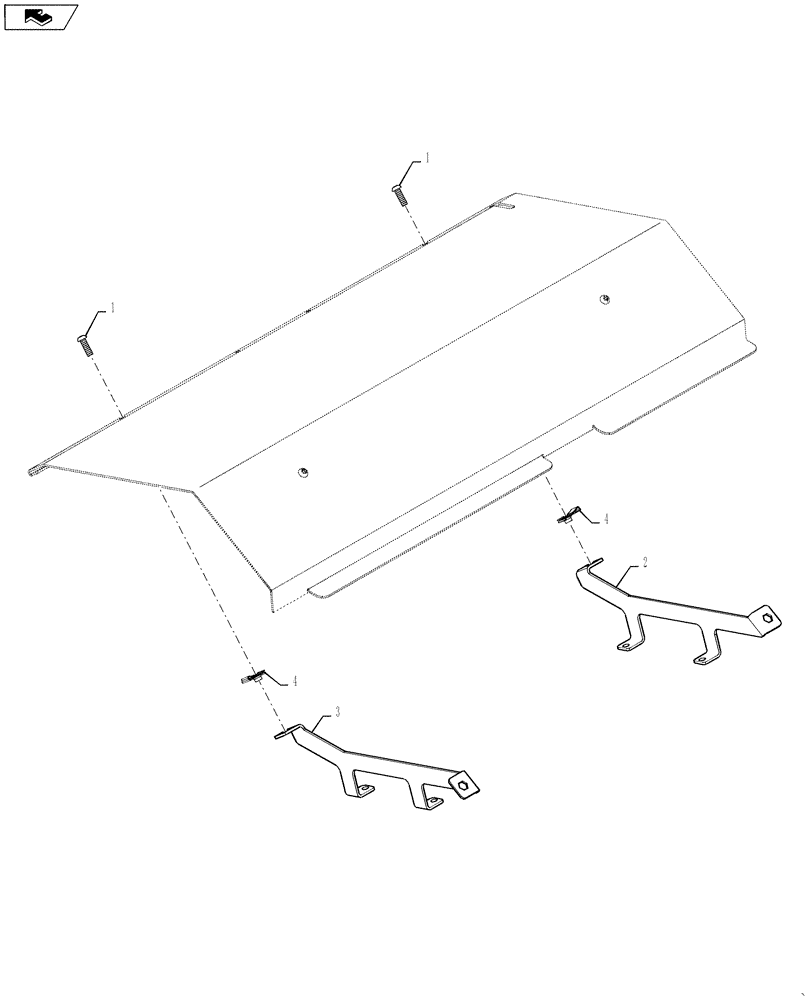

Схема запчастей Case IH SR175 - (90.100.AD) - AIR CONDITIONER BRACKET (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
4
1
2
1
4
3

Артикул

Название

Примечание

Количество

1

87028323

HEX SOC SCREW,Btn Head, M8 x 1.25 x 25mm, Cl 8.8

4шт.

2

47509036

LH, Tilt Hood

REINFORCEMENT

1шт.

3

47509038

RH, Tilt Hood

REINFORCEMENT

1шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

Выбрано товаров: 4
