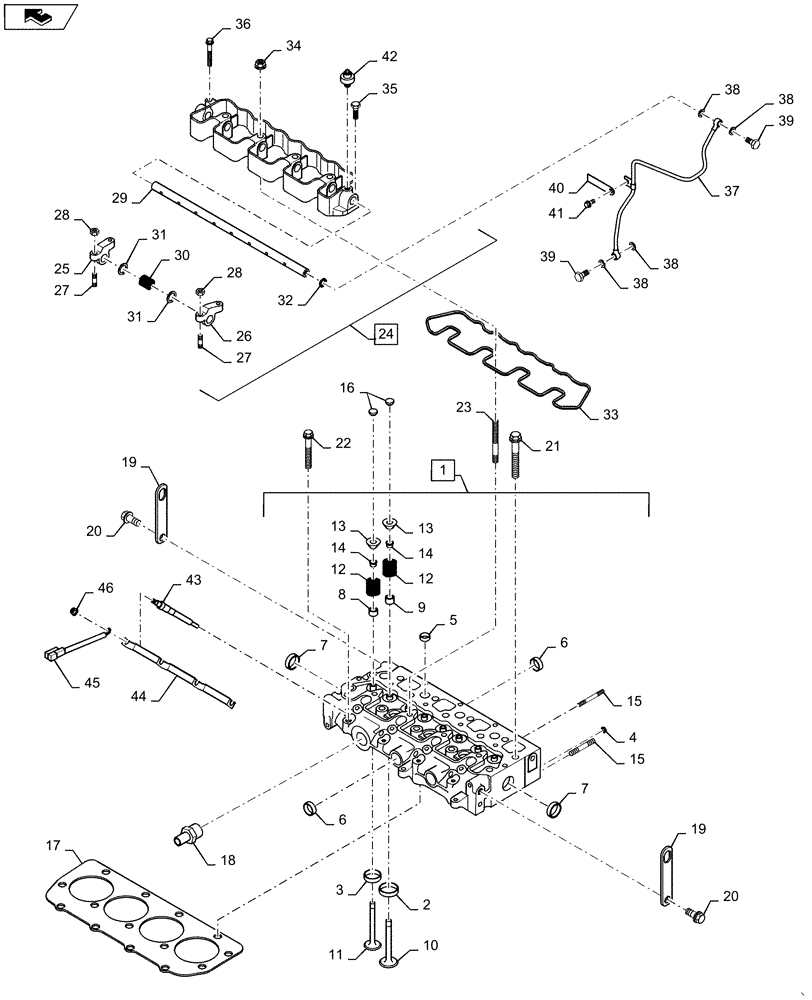

Запчасти Case IH SR175 (10.101.AA) - CYLINDER HEAD & RELATED PARTS (10) - ENGINE

1

SBA111011880

Cylinder Head Assembly, Incl 2 - 15

CYLINDER HEAD,4 Cylinder

1шт.

2

SBA110136485

Intake

VALVE SEAT

4шт.

3

SBA110136495

Exhaust

VALVE SEAT

4шт.

4

SBA064210010

PLUG,10mm

4шт.

5

SBA064210018

PLUG

7шт.

6

SBA064210025

PLUG,25mm

5шт.

7

SBA064210030

PLUG,30mm

2шт.

8

SBA120406050

SEAL

Valve Guide, Exhaust

4шт.

9

SBA120406070

SEAL

Valve Guide, Intake

4шт.

10

SBA120166400

Intake

VALVE

4шт.

11

SBA120176420

Exhaust

VALVE

4шт.

12

SBA198216700

SPRING

Valve

8шт.

13

SBA120186080

RETAINER

8шт.

14

SBA120226070

RETAINER

16шт.

15

SBA012110655

STUD

2шт.

16

SBA120216041

CAP

8шт.

17

SBA111147751

CYLINDER HEAD GASKET,1.1mm Thk

1.1mm Thick

1шт.

17

SBA111147761

CYLINDER HEAD GASKET,1.2mm Thk

1.2mm Thick

1шт.

17

SBA111147771

CYLINDER HEAD GASKET,1.3mm Thk

1.3mm Thick

1шт.

18

SBA198487901

CONNECTION

1шт.

19

SBA195816210

Hanger

HANGER

2шт.

20

SBA011511020

BOLT,M10 x 20

2шт.

21

SBA111136500

Cylinder Head

BOLT

14шт.

22

SBA111136511

Cylinder Head

BOLT

4шт.

23

SBA012109044

STUD

4шт.

24

SBA120036810

ROCKER ARM

Assembly, Incl 25 - 32

1шт.

25

SBA120356131

ROCKER ARM

Intake

4шт.

26

SBA120356141

ROCKER ARM

Exhaust

4шт.

27

SBA199486220

ADJUSTMENT SCREW

8шт.

28

SBA020109076

NUT

8шт.

29

SBA120316201

SHAFT

Rocker Arrm

1шт.

30

SBA198217170

SPRING

Rocker Arm

3шт.

31

SBA199280300

SHIM,0.5mm Thk

6шт.

32

SBA052109076

O-RING,2.4mm Thk x 10.8mm ID

1шт.

33

SBA120996250

GASKET

Rocker Arm

1шт.

34

SBA023100010

NUT

4шт.

35

SBA011310625

CAPTIVE WASHER SCREW,Hex, M6 x 25, Cl 8.8

1шт.

36

SBA011310650

BOLT

1шт.

37

SBA140607720

Oil

PIPE

1шт.

38

SBA140996260

SEAL

M8

4шт.

39

SBA198486780

BANJO BOLT

2шт.

40

SBA399113630

CLAMP

1шт.

41

SBA011510812

CAPTIVE WASHER SCREW,Hex, M8 x 12, G5

1шт.

42

SBA185246330

PRESSURE SWITCH

Engine Oil

1шт.

43

SBA185366110

GLOW PLUG

4шт.

44

SBA185376180

HYD CONNECTOR

1шт.

45

SBA185606530

Glow Plug

WIRE HARNESS

1шт.

46

SBA023100004

NUT

4шт.
