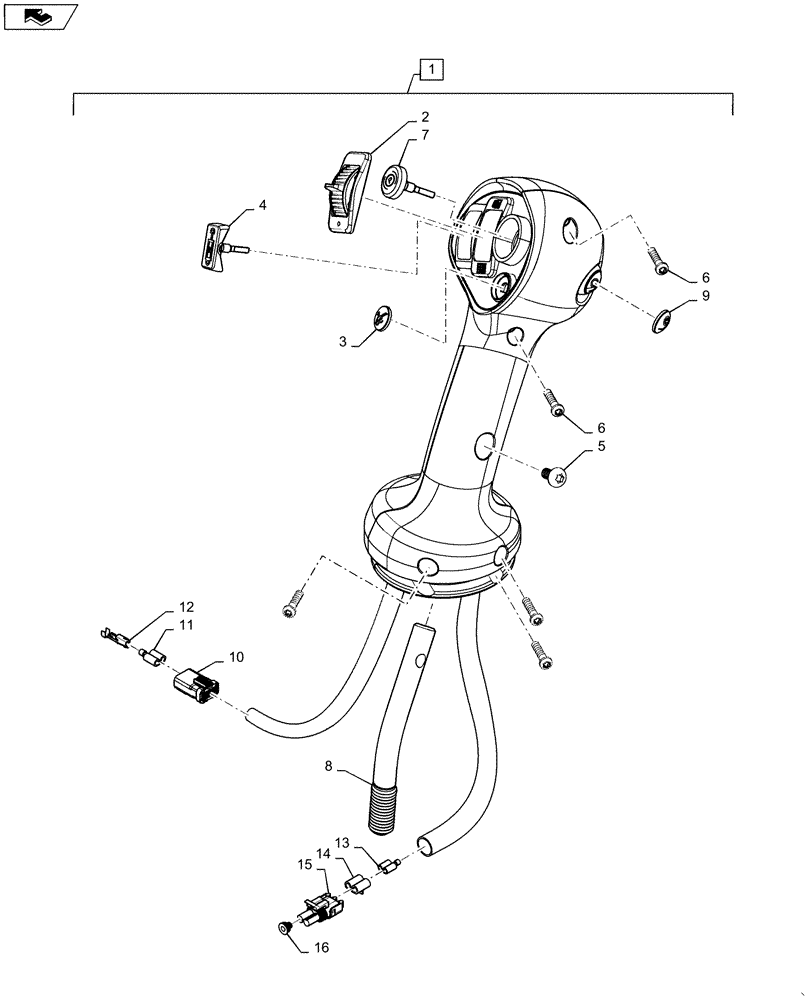

Запчасти Case IH SR175 (55.512.CL[20]) - LEVEL 350 HANDLE GRIP, RH (55) - ELECTRICAL SYSTEMS

1

84201277

RH, Level 350, Incl 2 - 16

HANDLE GRIP

1шт.

2

84282677

SWITCH

Proportional Hyd W/ Detent Dual

1шт.

2

84296544

SWITCH

Proportional Hyd W/ Detent Single (Optional)

1шт.

2

84537211

SWITCH

Proportional Hyd W/O Detent Single (Optional)

1шт.

2

84528445

Proportional Hyd W/O Detent Dual (Optional)

SWITCH

1шт.

3

84296543

SWITCH

Float

1шт.

4

84296545

SWITCH

Multifunction #1, 3 Position Rocker

1шт.

5

87487159

SCREW,BTN HD, #10 - 32 x 5/8"

1шт.

6

87487160

SCREW,Torx, Pan HD, #6 - 19 x 5/8"

6шт.

7

87630127

SWITCH

Park Brake

1шт.

8

87652816

ROD

RH, Handle Mounting

1шт.

9

87673089

SWITCH

Ride Control

1шт.

10

87382929

WIRE CONNECTOR,Male, 14 Cavities

14 Way, Male

1шт.

11

84395362

TERMINAL,Apex, 2.80mm, Male, 0.50 - 0.80mm2 Wire Range

8шт.

12

84279937

PLUG,Apex, 2.80mm

6шт.

13

256346A1

CONNECTOR, ELEC

4 Way, Female

1шт.

14

87689643

CLIP,4.8mm ID

Locking

1шт.

15

221381A1

TERMINAL CONNECTOR,Female, 0.8 - 1 mm2

4шт.

16

87690548

PLUG,White, 2.15mm - 1.60mm

4шт.
