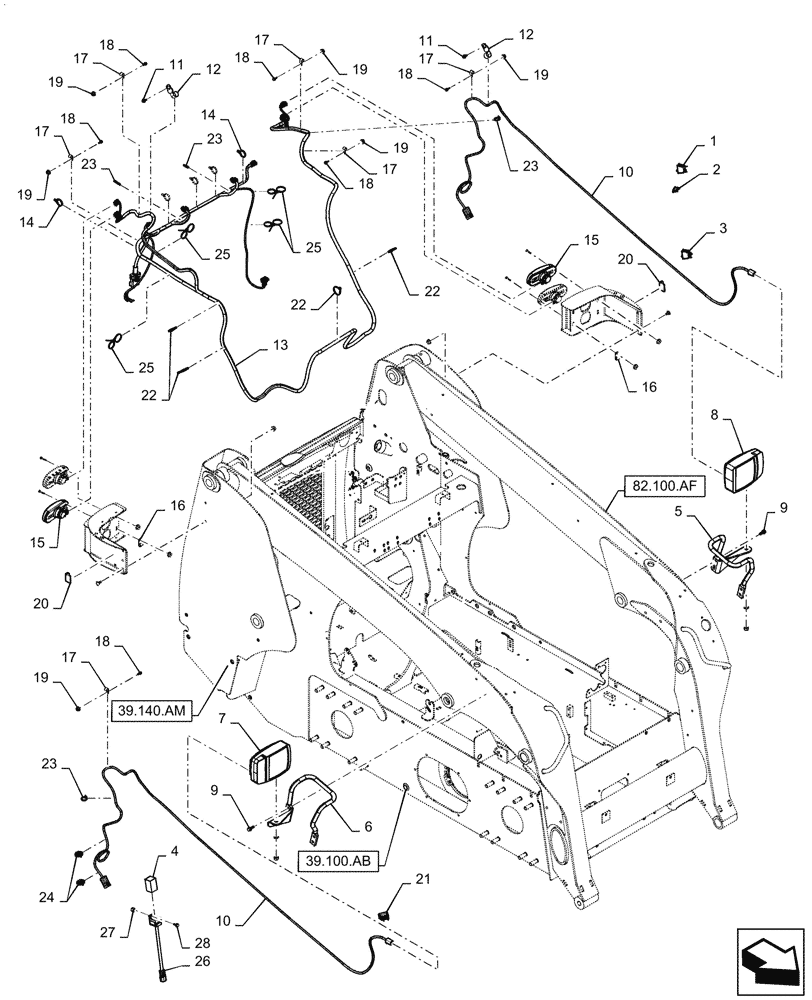

Запчасти Case IH SR175 (55.404.CY[01]) - EU ROAD LIGHTS (55) - ELECTRICAL SYSTEMS

1

86604657

INDICATOR, TURN SIGN

1шт.

2

87634133

SWITCH

Hazard Lights

1шт.

3

84263153

SWITCH

Loader Lockout

1шт.

4

9821783

FLASHER UNIT

1шт.

5

84306583

BRACKET

Light LH

1шт.

6

84306585

BRACKET

Light RH

1шт.

7

87572859

LAMP

Combination Right

1шт.

8

87572860

LAMP

Combination Left

1шт.

9

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

10

84262451

FE Boom RD

WIRE HARNESS

2шт.

11

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

12

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

2шт.

13

47820998

Rear Road Jumper Case

WIRE HARNESS

1шт.

14

87668737

CABLE TIE,203.2mm L, Nylon, Black

55шт.

15

47941860

Rear Road

LAMP

1шт.

16

87016870

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, J Type

2шт.

17

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

6шт.

18

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

6шт.

19

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

6шт.

20

84416164

FOAM INSULATION

Upper Chassis

2шт.

21

131691A1

ROCKER SWITCH

Front & Rear Coupler

1шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

23

263117

CABLE TIE,292.1mm L, Nylon, Black

4шт.

24

84259663

CABLE TIE,228.6mm L, Nylon, Black

2шт.

25

82012869

CABLE TIE,300mm L, Nylon, Black

Double Loop

4шт.

26

47972152

JUMPER

Wire Harness, Flasher

1шт.

27

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

28

86639263

BOLT,Hex, M5, Cl 8

1шт.
