Запчасти Case IH SR175 (55.404.CL) - TURN SIGNAL, REAR COVER (55) - ELECTRICAL SYSTEMS

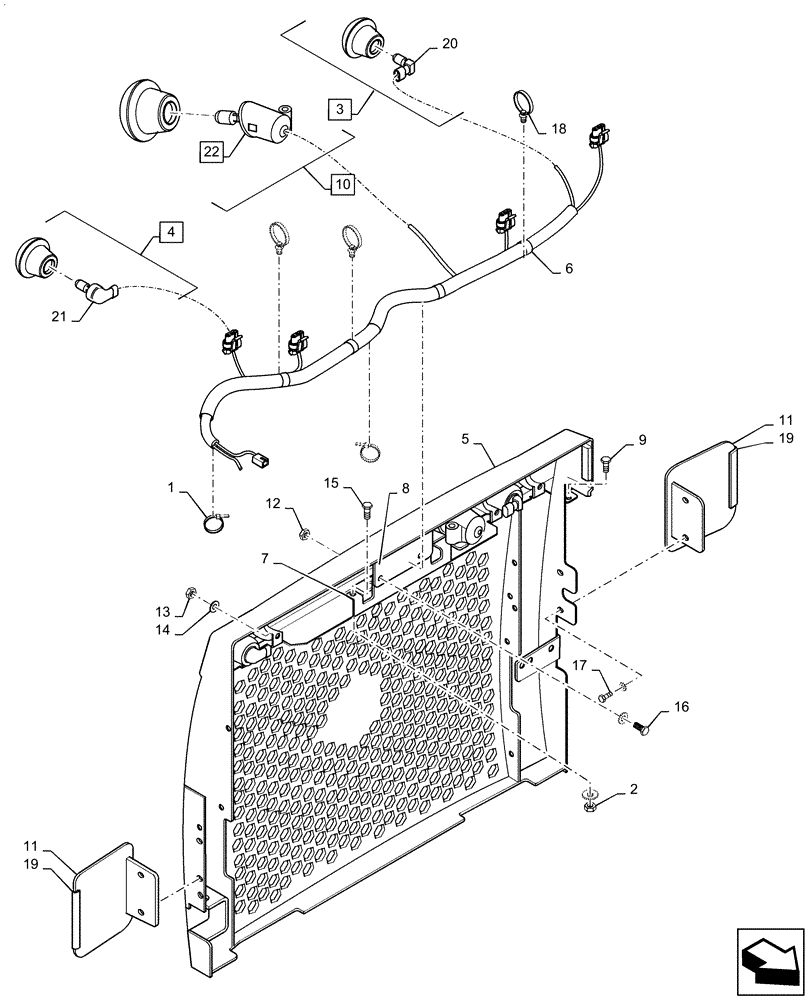

Схема запчастей Case IH SR175 - (55.404.CL) - TURN SIGNAL, REAR COVER (55) - ELECTRICAL SYSTEMS
19
4
18
8
3
home
21
12
5
20
15
6
7
1
22
17
10
11
16
11
19
9
14
2
13

Артикул

Название

Примечание

Количество

1

263117

CABLE TIE,292.1mm L, Nylon, Black

4шт.

2

412250

NUT,M8 x 1.25, Cl 8

2шт.

3

47534064

Turn, SMV, Amber Incl 20

LIGHT ASSY.,12V, 25W

2шт.

4

47537904

Turn, SMV, Red Incl 21

LIGHT ASSY.,12V, 10W

2шт.

5

47538126

Rear Door, Years: -07-DEC-14

COVER

1шт.

5

47732028

Rear Door, Start Year: 08-DEC-14

COVER

1шт.

6

47541193

Lamp Jumper, Rear

WIRE HARNESS

1шт.

7

47634779

Door, Top

ANGLE

1шт.

8

47635985

Light Bar Bracket

ANGLE

1шт.

9

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

3шт.

10

84292121

WORK LAMP,12V, 20W, Clear

Flood, Incl 22

2шт.

11

84541176

Light

BRACKET

2шт.

12

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

13

86508812

NUT,M3, Cl 8

8шт.

14

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

8шт.

15

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

16

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

17

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

4шт.

18

87668737

CABLE TIE,203.2mm L, Nylon, Black

3шт.

19

47510629

TRIM

use 250mm from Bulk

1шт.

20

47538121

BULB,7506, 12V, 21W, Clear

1шт.

21

47538119

BULB,5008, 12V, 10W, Clear

1шт.

22

84254134

WORK LAMP,12V, 20W, Clear

1шт.

Выбрано товаров: 23
