Запчасти Case IH SR175 (55.302.AI[02]) - BATTERY DISCONNECT (55) - ELECTRICAL SYSTEMS

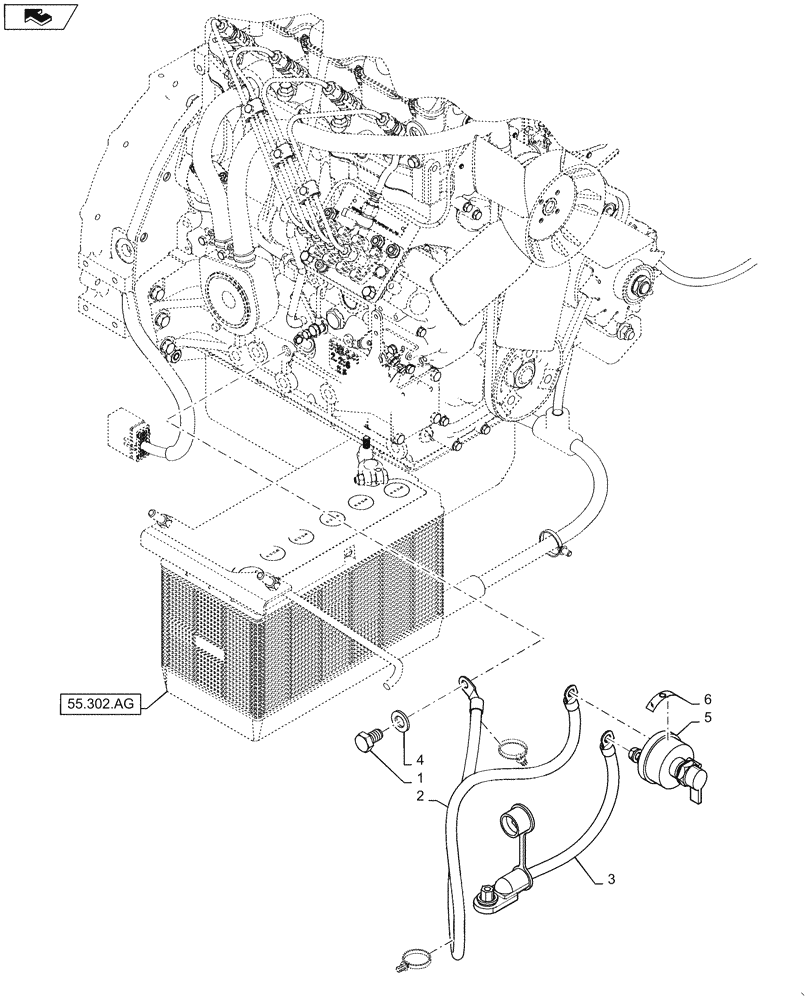

Схема запчастей Case IH SR175 - (55.302.AI[02]) - BATTERY DISCONNECT (55) - ELECTRICAL SYSTEMS
2
home
1
5
3
6
55.302.ag
4

Артикул

Название

Примечание

Количество

1

15976921

BOLT,Hex, M14 x 1.5 x 22mm, Cl 8.8, Full Thd

Battery Disconnect

1шт.

2

84599381

Master Disconnect Switch To Engine

GROUND CABLE,1001mm L

1шт.

3

84599382

Battery To Master Disconnect Switch

NEG BATTERY CABLE,340mm L

1шт.

4

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

M20

1шт.

5

87458467

ROTARY SWITCH

Master Disconnect

1шт.

6

176332A1

DECAL

Battery Disconnect

1шт.

Выбрано товаров: 6
