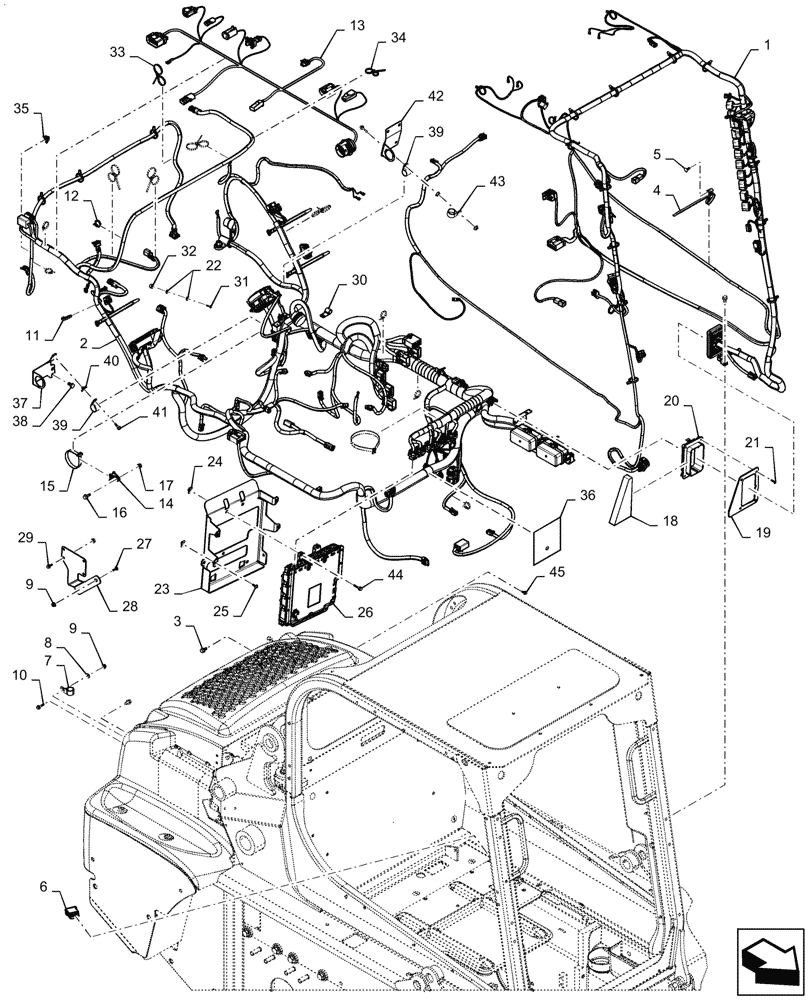

Запчасти Case IH SR175 (55.101.AC[03]) - WIRE HARNESS & CONNECTOR, ELECTRONIC CONTROLS (18-JUN-2015 THRU 13-NOV-2016) (55) - ELECTRICAL SYSTEMS

1

47803842

Cab, EH

WIRE HARNESS

1шт.

2

47813008

Chassis, EH

WIRE HARNESS

1шт.

3

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

4

84420746

CABLE TIE,403.9mm L, Nylon

10шт.

5

84420768

FASTENER,Pine Tree, 5/8" x 20.01mm

10шт.

6

84251343

SWITCH

Rocker, Drive Pattern

1шт.

7

619284

CLAMP,23.8mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

8

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

9

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

7шт.

10

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

11

87668737

CABLE TIE,203.2mm L, Nylon, Black

2шт.

12

263117

CABLE TIE,292.1mm L, Nylon, Black

19шт.

13

47818396

Chassis, RH Tower

WIRE HARNESS

1шт.

14

84360210

BASE

Tie

1шт.

15

84266050

CABLE TIE,384mm L, Polyamide

6шт.

16

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

17

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

18

47825018

FOAM INSULATION,172mm L x 27.9mm Thk

1шт.

19

47825472

Bulkhead Adapter, Gray

PLATE

1шт.

20

87718301

WIRE CONNECTOR,Flange

1шт.

21

47825034

SCREW,Pan Head, #10 - 14 x 5/8"

4шт.

22

80707

WASHER,0.25" ID x 0.56" OD x 0.05" Thk

2шт.

23

47860657

BRACKET

UCM Support, Gray

1шт.

24

86625073

SPRING NUT,M6 x 1

10шт.

25

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

4шт.

26

47395504

ECU

SSL

1шт.

27

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

28

47832750

GCU Fuse Mount

BRACKET

1шт.

29

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

30

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

31

87308282

SCREW,HWH, #10 - 32 x 3/4"

1шт.

32

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

33

82012869

CABLE TIE,300mm L, Nylon, Black

12шт.

34

82013031

CABLE TIE,193mm L

1шт.

35

84259663

CABLE TIE,228.6mm L, Nylon, Black

3шт.

36

47859251

Fuse Box Layout, EH

DECAL

1шт.

37

NS

NOT SERVICED

Harness Retention, Gray

1шт.

38

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

39

87307884

CLAMP,27mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

40

87016585

NUT,Spring, M6 x 1

1шт.

41

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

42

NS

NOT SERVICED

Harness Retention

1шт.

43

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

44

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

4шт.

45

86625199

SELF-TAP SCREW,Hex, M6 x 1 x 13mm

2шт.
