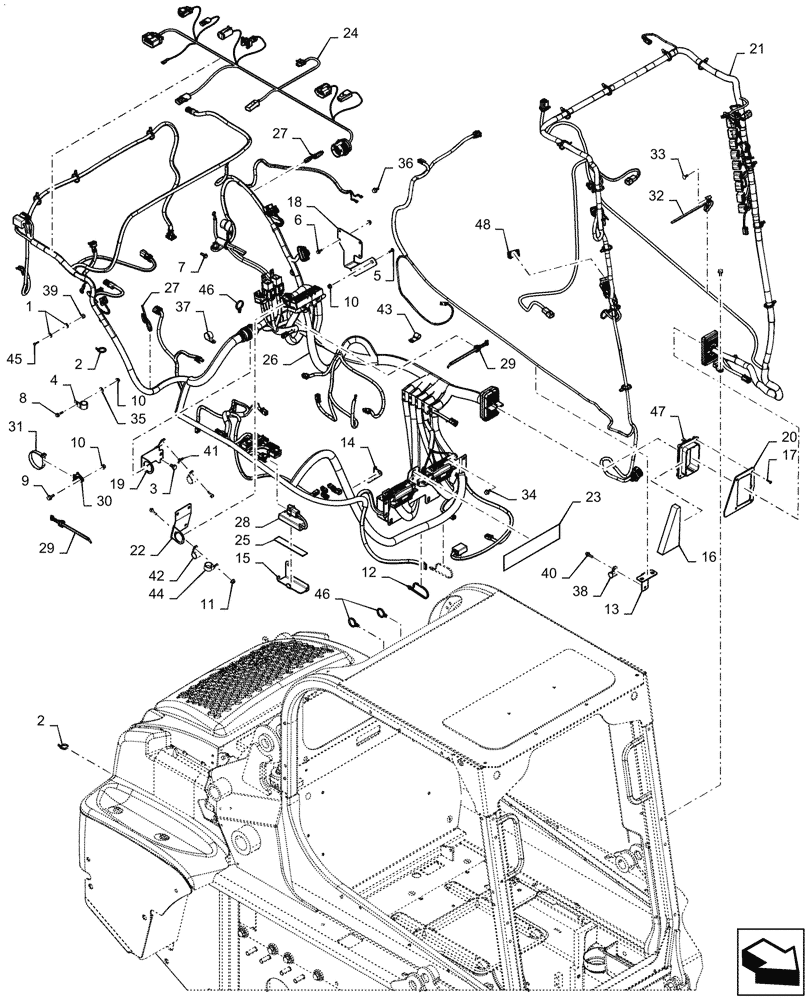

Запчасти Case IH SR175 (55.101.AC[02]) - WIRE HARNESS & CONNECTOR, MECHANICAL CONTROLS, OPEN CAB (14-NOV-2016 & NEWER) (55) - ELECTRICAL SYSTEMS

1

80707

WASHER,0.25" ID x 0.56" OD x 0.05" Thk

2шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.

3

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

4

619284

CLAMP,23.8mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

5

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

6

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

7

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

3шт.

8

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

9

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

10

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

7шт.

11

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

4шт.

13

47807585

BRACKET

Harness Crossover

1шт.

14

47807590

BRACKET

Crossover, Lower Guide

1шт.

15

47807591

BRACKET

Control Tray

1шт.

16

47825018

FOAM INSULATION,172mm L x 27.9mm Thk

1шт.

17

47825034

SCREW,Pan Head, #10 - 14 x 5/8"

4шт.

18

47832750

GCU Fuse Mount

BRACKET

1шт.

19

NS

NOT SERVICED

Harness Retention, Gray

1шт.

20

47867182

Bulkhead Adapter, Gray

PLATE

1шт.

21

47920666

WIRE HARNESS

Cab, Mech

1шт.

22

NS

NOT SERVICED

Harness Retention

1шт.

23

47946322

Fuse Box Layout, Mech

DECAL

1шт.

24

47954071

Chassis, RH Tower

WIRE HARNESS

1шт.

25

47955279

TAPE,150mm L

1шт.

26

47961502

Chassis, EH

WIRE HARNESS

1шт.

27

82012869

CABLE TIE,300mm L, Nylon, Black

6шт.

28

84131374

MODULE

Prop Aux

1шт.

29

84259663

CABLE TIE,228.6mm L, Nylon, Black

4шт.

30

84360210

BASE

Tie

1шт.

31

84360212

CABLE TIE,294.2mm L, Nylon

22шт.

32

84420746

CABLE TIE,403.9mm L, Nylon

10шт.

33

84420768

FASTENER,Pine Tree, 5/8" x 20.01mm

10шт.

34

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

5шт.

35

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

36

86625199

SELF-TAP SCREW,Hex, M6 x 1 x 13mm

2шт.

37

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

38

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

2шт.

39

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

40

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

1шт.

41

87016585

NUT,Spring, M6 x 1

1шт.

42

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

43

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

44

87307884

CLAMP,27mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

45

87308282

SCREW,HWH, #10 - 32 x 3/4"

1шт.

46

87668737

CABLE TIE,203.2mm L, Nylon, Black

5шт.

47

87718301

WIRE CONNECTOR,Flange

1шт.

48

126844A1

PLUG,1.427” x .62” , Plastic

1шт.
