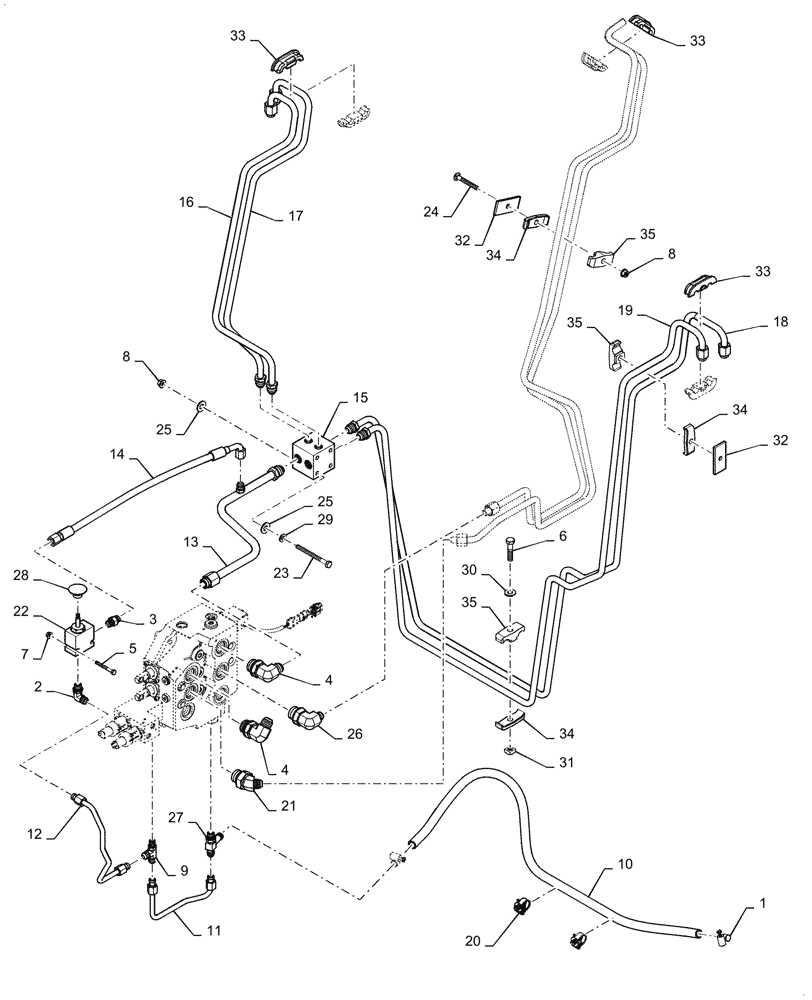

Запчасти Case IH SR175 (35.701.AX[01]) - LOADER VALVE PLUMBING 03-OCT-2016 AND AFTER (35) - HYDRAULIC SYSTEMS

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

2шт.

2

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

3

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

4

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

2шт.

5

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

6

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

7

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

9

47451735

TEE,3/8” JIC x 1/4” ORB x 3/8” JIC

1шт.

10

47735108

HOSE,12.7mm ID X 1060mm L

1шт.

11

47966042

LDR Valve Drain

HYD TUBE

1шт.

12

47976179

PRV Drain

HYD TUBE

1шт.

13

84181021

RIGID TUBE

VLV to Manifold, Lift

1шт.

14

84201224

Override, Years: -30-JAN-17

HYDRAULIC HOSE,9.53mm ID x 535mm L, SAE 100R16

1шт.

14

48093517

Override, Start Year: 31-JAN-17

HYDRAULIC HOSE,6.3mm ID x 535mm L, SAE 100R16

1шт.

15

84258823

HYDRAULIC MANIFOLD

1шт.

16

84258829

Manifold to RT Arm, Lower

RIGID TUBE

1шт.

17

84258833

Manifold to RT Arm, Lift

RIGID TUBE

1шт.

18

84258841

Manifold to LFT Arm, Lift

RIGID TUBE

1шт.

19

84258858

Manifold to LFT Arm, Lower

RIGID TUBE

1шт.

20

84259663

CABLE TIE,228.6mm L, Nylon, Black

2шт.

21

84289681

45 ELBOW,3/4" - 16 JIC x 1-1/16" - 12 ORB

1шт.

22

84294239

Boom Override

VALVE

1шт.

23

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

24

86512445

CARRIAGE BOLT,Sht Nk, M8 x 60mm, Cl 8.8

1шт.

25

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

26

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

1шт.

27

87459930

TEE

6MJ x 60RB x 8 Beaded

1шт.

28

87522292

KNOB

Override Valve

1шт.

29

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

30

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

31

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

32

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

2шт.

33

376523A2

SUPPORT,1/2"

6шт.

34

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

3шт.

35

D120679

CLAMP,Tube, 1/2"

3шт.
