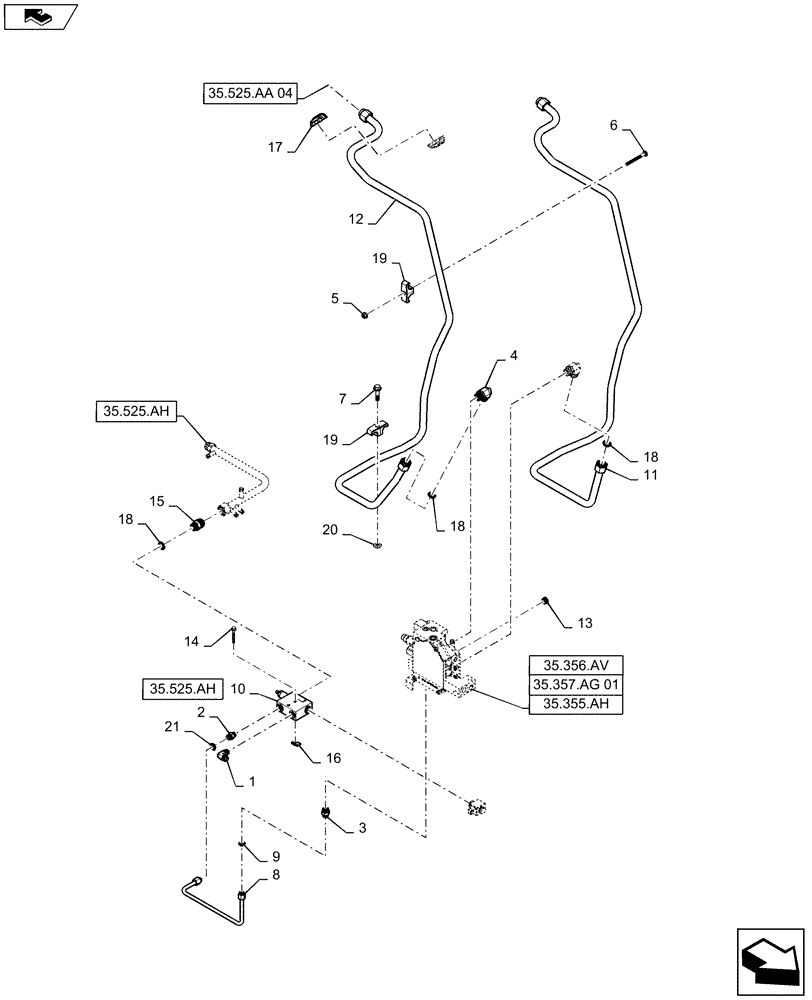

Запчасти Case IH SR175 (35.525.AA[03]) - AUXILIARY CHASSIS PLUMBING, HIGH FLOW (35) - HYDRAULIC SYSTEMS

1

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

2

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 9

1шт.

3

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 21

1шт.

4

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 18

2шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

6

366046

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8

1шт.

7

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

8

84186146

High Flow Valve To Loader Valve

TUBE,12.7mm OD

1шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

10

84256405

HYDRAULIC VALVE

High Flow Combiner

1шт.

11

84186142

Loader Valve To LIft Arm

TUBE

1шт.

12

84186144

Loader Valve To Lift Arm

TUBE

1шт.

13

84373460

PLUG,23.8mm OD

Load Check

1шт.

14

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

15

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 18

1шт.

16

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

17

84362112

Hyd Tube

SUPPORT

2шт.

18

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

19

D124301

CLAMP,3/4" ID

2шт.

20

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

21

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
