Запчасти Case IH SR175 (35.525.AA[02]) - AUXILIARY BOOM ARM PLUMBING, STANDARD FLOW (35) - HYDRAULIC SYSTEMS

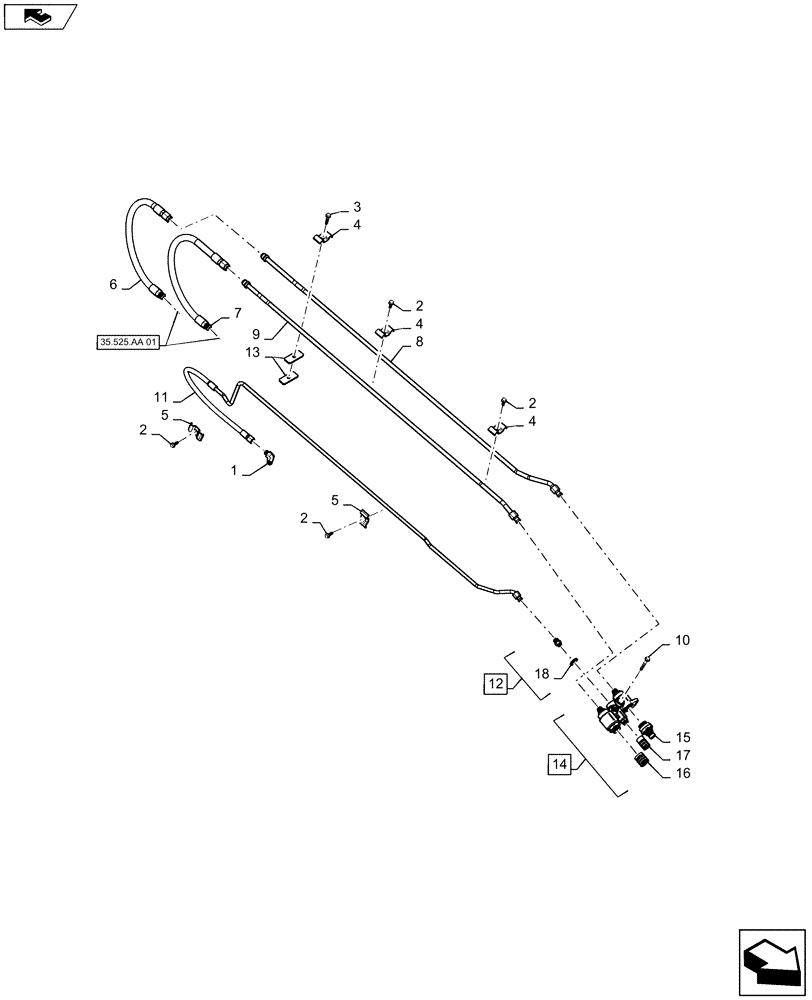

Схема запчастей Case IH SR175 - (35.525.AA[02]) - AUXILIARY BOOM ARM PLUMBING, STANDARD FLOW (35) - HYDRAULIC SYSTEMS
2
8
18
3
4
5
17
2
2
6
home
1
13
4
2
16
9
11
7
35.525.aa 01
5
15
4
12
10
14

Артикул

Название

Примечание

Количество

1

76352

90 ELBOW,3/4" - 16 JIC x 1/2" - 14 NPTF

1шт.

2

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

1шт.

3

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

1шт.

4

84252828

CLAMP,65.2mm L

Butterfly

3шт.

5

84254056

HOSE CLAMP,69.2mm L

Butterfly

2шт.

6

84322558

Chassis Plumbing To 1/2" Male Coupler Tube

FLEXIBLE HOSE,15.88mm ID x 698mm L, SAE 100R17

1шт.

7

84322561

Chassis Plumbing To 1/2" Female Coupler Tube

FLEXIBLE HOSE,15.88mm ID x 773mm L, SAE 100R17

1шт.

8

84322562

1/2" Male Coupler

HYD TUBE

1шт.

9

84322567

1/2" Female Coupler

HYD TUBE

1шт.

10

84331287

SCREW,HWH, 3/8" - 16 x 3"

2шт.

11

84338474

Case Drain, Connects To 3/8" Female Coupler

HYD TUBE

1шт.

12

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 18

1шт.

13

87023483

PLATE,82mm L x 31.8mm W x 7.37mm Thk

Clamp

2шт.

14

84173613

Manifold, Connect Under Pressure, Incl 15 - 17, Years: -01-FEB-13

VALVE

1шт.

14

47396759

VALVE

Manifold, Connect Under Pressure, Incl 15 - 17, Start Year: 01-FEB-13

1шт.

15

84390117

1/2" Male, Years: -01-FEB-13

COUPLING

1шт.

15

47396760

COUPLING,1/2" Male

, Start Year: 01-FEB-13

1шт.

16

84390118

1/2" Female, Years: -01-FEB-13

COUPLING

1шт.

16

47396761

COUPLING,1/2" Female

, Start Year: 01-FEB-13

1шт.

17

84390119

3/8" Female, Years: -01-FEB-13

COUPLING

1шт.

17

47396762

COUPLING,3/8" Female

, Start Year: 01-FEB-13

1шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 22
