Запчасти Case IH SR175 (35.353.AD[05]) - 2 SPEED LINES (35) - HYDRAULIC SYSTEMS

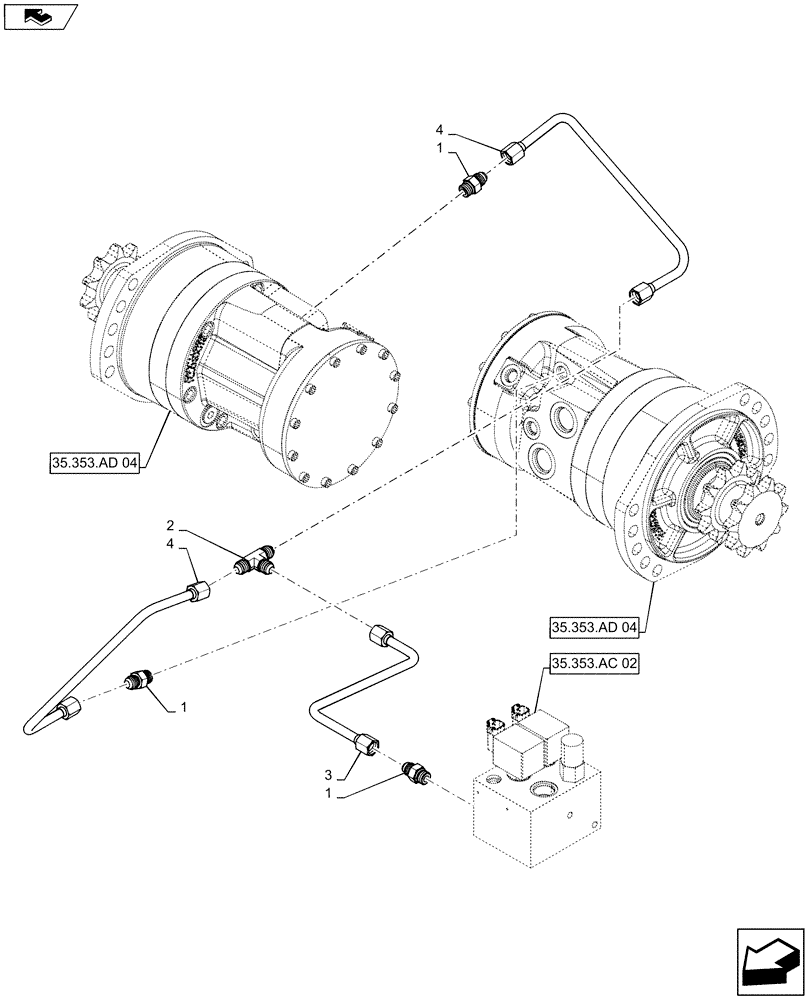

Схема запчастей Case IH SR175 - (35.353.AD[05]) - 2 SPEED LINES (35) - HYDRAULIC SYSTEMS
3
1
4
35.353.ad 04
4
35.353.ac 02
home
1
1
2
35.353.ad 04
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

3шт.

2

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

3

84258810

Two Speed Common

RIGID TUBE

1шт.

4

84259640

Two Speed

RIGID TUBE

2шт.

Выбрано товаров: 4
