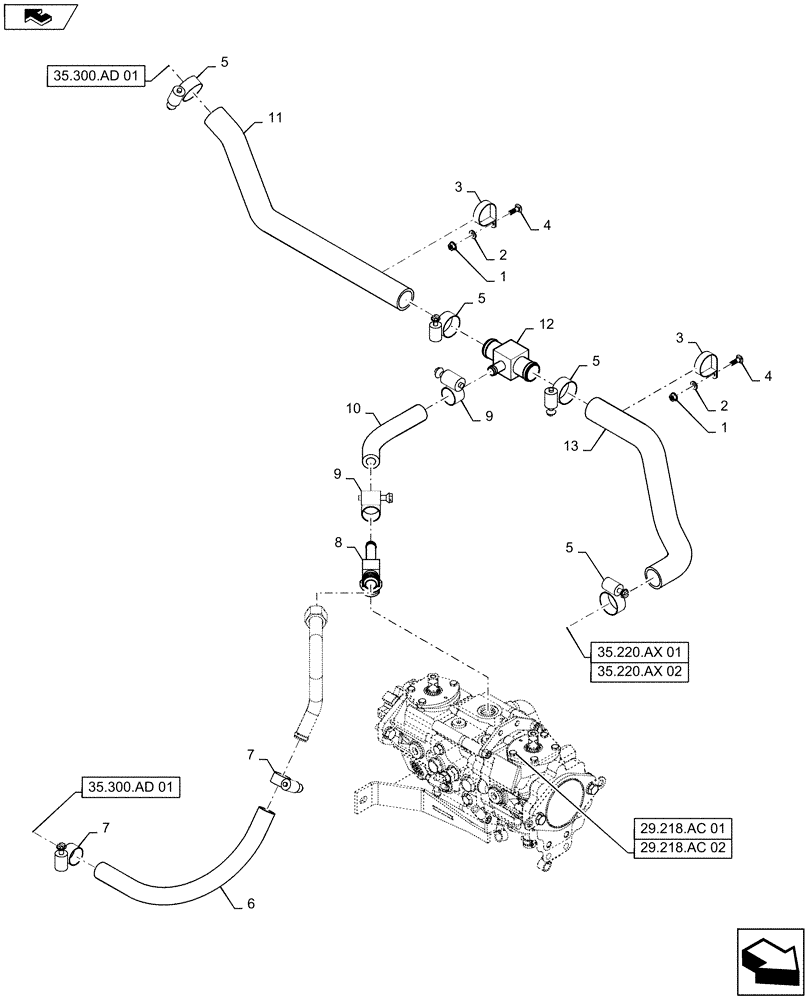

Запчасти Case IH SR175 (29.204.AB[02]) - HYDROSTATIC PUMP, SUPPLY LINES, MECHANICAL CONTROLS (29) - HYDROSTATIC DRIVE

1

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

2

87655042

8.80 X 17.5 X 2.2mm

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

3

84265306

CLAMP,47.6mm, Coat, 8.7mm Bolt Hole, P Type

47.6mm

2шт.

4

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

2шт.

5

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

4шт.

6

84349308

Charge Supply

HOSE,25mm ID x 500mm OAL

1шт.

7

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

2шт.

8

84344939

16MB

TEE,37 Degree 1 5/16"-12 x 1 5/16"-12 ORB x -12 Bead Run

1шт.

9

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

10

84344943

Tandem Supply

HOSE,19.05mm ID x 215mm L, SAE 100R4

1шт.

11

84349294

Gear Pump Suction

HOSE

1шт.

12

84511713

24 Bead

TEE,-24 Bead x -24 Bead x -12 Bead

1шт.

13

84349295

Gear Pump Suction

HOSE,38.1mm ID

1шт.
