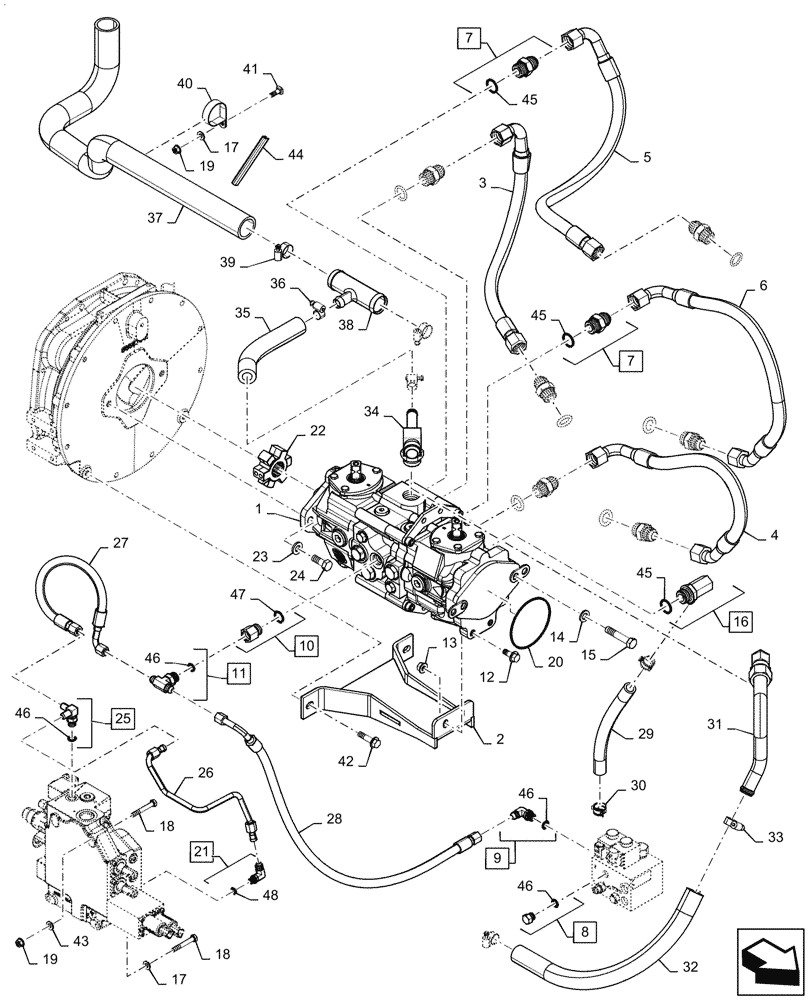

Запчасти Case IH SR175 (29.204.AB[01]) - HYDROSTATIC PUMP DRIVE LINES, MECHANICAL CONTROLS (29) - HYDROSTATIC DRIVE

1

84256059

Hydraulic Tandem

PUMP,35 CC

1шт.

2

84254080

Pump Support

PLATE

1шт.

3

84258854

HYDRAULIC HOSE,15.88mm ID x 669mm L, SAE 100R19

1шт.

4

47843573

HYDRAULIC HOSE,16mm ID x 621mm L, SAE 100R19

1шт.

5

84412421

HYDRAULIC HOSE,16mm ID x 730mm L, SAE 100R19

1шт.

6

47843574

HYDRAULIC HOSE,16mm ID x 707mm L, SAE 100R19

1шт.

7

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 45

8шт.

8

76349

PLUG,9/16" - 18 ORB

Incl 46

1шт.

9

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 46

1шт.

10

84323487

HYD CONNECTOR,7/8"-14 x 3/4"-16 ORB

Incl 47

1шт.

11

87331046

TEE,3/4" - 16 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 46

1шт.

12

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

13

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

14

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

15

280615

BOLT,1/2"-13 x 2.8.13" OAL, Cl 5, Full Thd

2шт.

16

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

Incl 45

1шт.

17

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

18

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

19

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

20

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

21

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 48

1шт.

22

87713745

Hub Star

CLUTCH,15T

1шт.

23

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

24

280853

BOLT,1/2"-13 x 1.563" OAL, Cl 8, Full Thd

2шт.

25

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Incl 46

1шт.

26

84373389

RIGID TUBE,9.53mm OD

EH Aux Charge

1шт.

27

84259516

FLEXIBLE HOSE,9.53mm ID x 482.3mm L, SAE 100R17

Loader Valve Interlock

1шт.

28

84201225

Charge to Brake

HOSE ASSY.,9.53mm ID x 745mm L, SAE 100R17

1шт.

29

84273648

Pump Drain

HOSE,15.88mm ID x 245mm L

1шт.

30

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

31

84291886

Hydraulic Charge Suction

RIGID TUBE,25.4mm OD

1шт.

32

84349308

Charge Supply

HOSE,25mm ID x 500mm OAL

1шт.

33

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.

34

84344939

TEE,37 Degree 1 5/16"-12 x 1 5/16"-12 ORB x -12 Bead Run

1шт.

35

84344943

Tandem Supply

HOSE,19.05mm ID x 215mm L, SAE 100R4

1шт.

36

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

37

47669646

Gear Pump Suction

HOSE,38.1mm ID

1шт.

38

47788716

TEE,3/4" Hose Barb x 1-1/2" Hose Barb x 1-1/2" Hose Barb

1шт.

39

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

4шт.

40

84265306

CLAMP,47.6mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

41

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

2шт.

42

9804263

BOLT,M10 x 49.2mm, Cl 8.8

2шт.

43

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

44

84353803

TRIM,30.48m Bulk

Cut to Length, 115mm

1шт.

45

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

10шт.

46

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

5шт.

47

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

48

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
