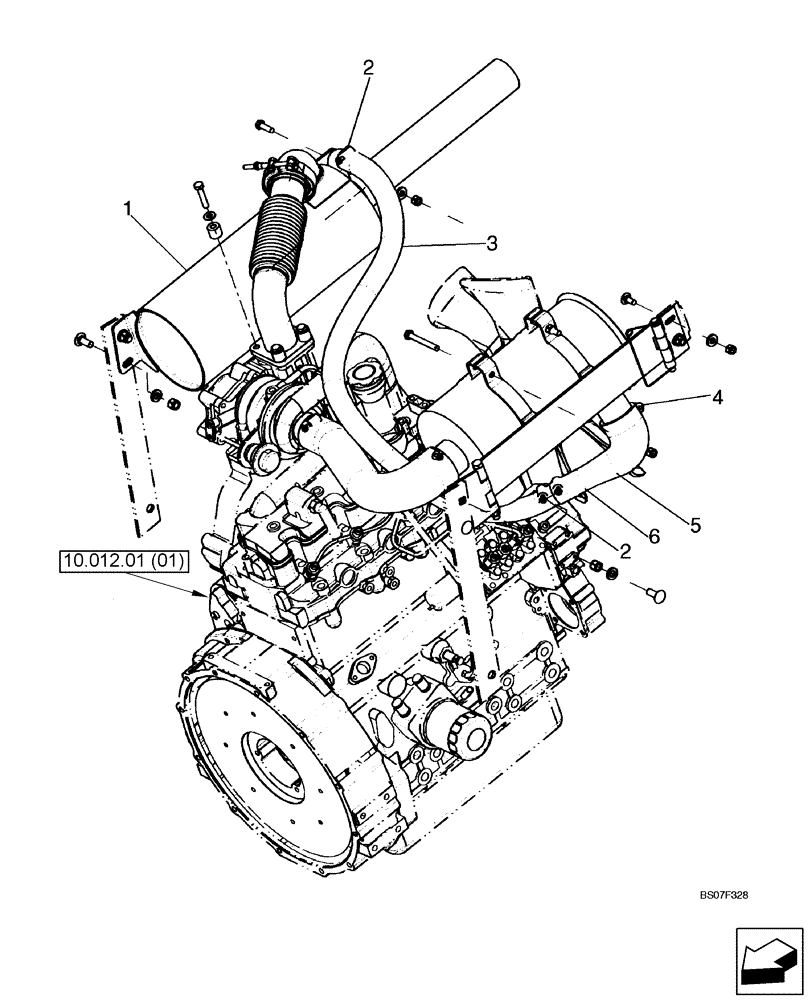

Запчасти Case IH SR175 (10.501.AB[02]) - MUFFLER - ASPIRATED (10) - ENGINE

87622517

Aspirated Air Cleaner And Muffler; Incl. 1 - 7 And Instructions

SERVICE KIT

1шт.

1

87611475

Aspirated Spark Arresting Muffler

MUFFLER

1шт.

2

9706921

HOSE CLAMP,12.7mm - 35mm

3шт.

3

86506399

HOSE,25.4mm ID x 940mm L, SAE 20R3

1шт.

4

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

1шт.

5

87032778

HOSE,25.40 mm ID, 50.80 mm ID x 151.70 mm, SAE 20R4 CLASS D1 or SAE 20R4 CLASS D2

Formed

1шт.

6

86504507

TUBE,21.70 mm ID x 25.40 mm OD x 38.1 mm L

1шт.

7

263117

CABLE TIE,292.1mm L, Nylon, Black

Not Illustrated

2шт.
